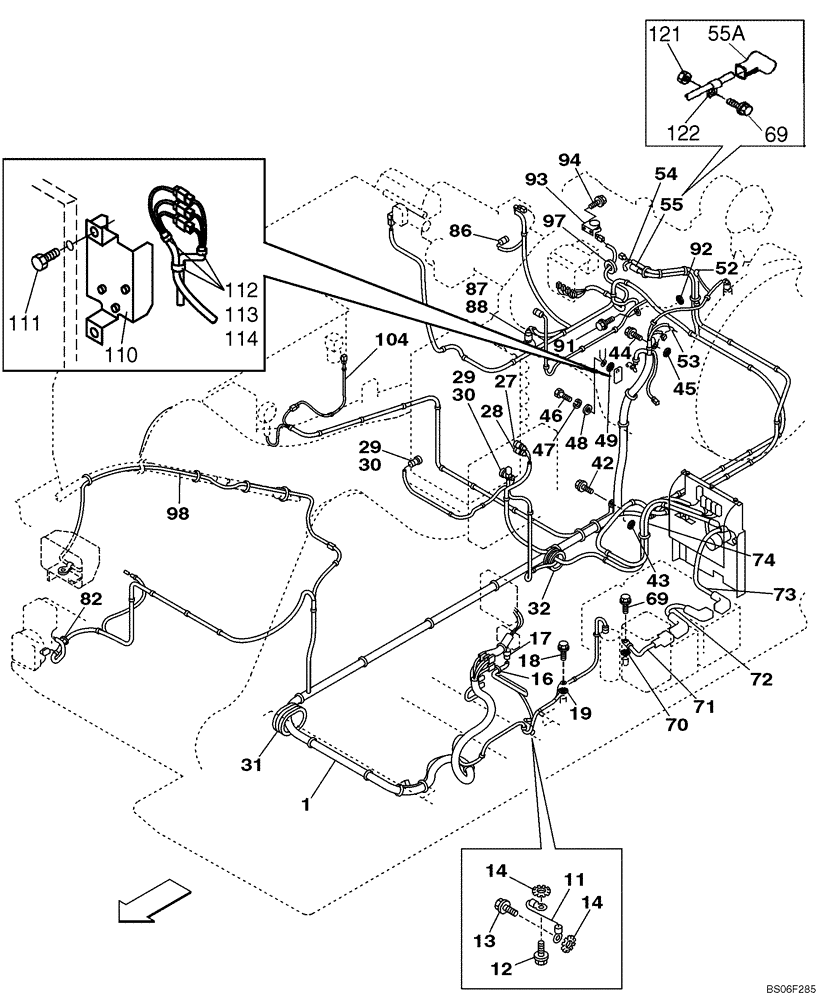

Запчасти Case CX460 (04-04) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KTR0568

WIRE HARNESS

Replaces KTR0560

1шт.

11

KHR2713

ELECTRIC CABLE

1шт.

12

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

14

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

16

150520A1

GROMMET

1шт.

17

159599A1

PRESSURE SWITCH

Auxiliary/Swing

1шт.

17

KHR10790

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

18

167518A1

BOLT

1шт.

19

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

159899A1

PRESSURE SWITCH

Pressure, Upper

1шт.

27

KHR10800

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

28

159900A1

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm)

1шт.

28

KHR10810

PRESSURE SWITCH

SENSOR, Use If Switch Has A Pigtail Connector

1шт.

29

168135A1

SENSOR,50 MPa

Incl. 30

2шт.

30

154475A1

O-RING

1шт.

31

163732A1

GROMMET

1шт.

32

164689A1

GROMMET

1шт.

42

167518A1

BOLT

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

44

KHR1828

BOLT,Spcl

1шт.

45

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

46

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

47

892-11012

LOCK WASHER,M12

1шт.

48

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

49

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

52

159172A1

CAP

1шт.

53

159179A1

PROTECTION CAP

1шт.

54

159173A1

CAP

1шт.

55

159184A1

CAP

If Used

1шт.

55a

KHR4114

PROTECTOR

If Used

1шт.

69

167518A1

BOLT

1-2шт.

70

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

71

159915A1

ELECTRIC CABLE

Battery - P.I.N. DAC0746101 - DAC461177

1шт.

71

KHR12370

POS BATTERY CABLE

Battery - P.I.N. DAC461178 And After

1шт.

72

KHR2430

ELECTRIC CABLE

Battery - P.I.N. DAC0746101 - DAC461177

1шт.

72

KHR12100

POS BATTERY CABLE

Battery - P.I.N. DAC461178 And After

1шт.

73

KHR3075

ELECTRIC CABLE

Battery - P.I.N. DAC0746101 - DAC461177

1шт.

73

KHR12190

POS BATTERY CABLE

Battery L=460mm, P.I.N. DAC461178 And After

1шт.

74

KHR3579

ELECTRIC CABLE

Starter - P.I.N. DAC0746101 - DAC461177

1шт.

74

KHR12250

ELECTRIC CABLE

Starter - P.I.N. DAC461178 And After

1шт.

82

159656A1

GROMMET

1шт.

86

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

87

KHR2915

SENSOR,5 MPa

Pressure (neg-cont.) Incl. 88

1шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

93

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

93

KHR3852

ALARM

1шт.

94

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

97

152643A1

GROMMET

1шт.

98

KHR3076

WIRE HARNESS

1шт.

104

KSR0925

WIRE HARNESS

1шт.

110

KTR0571

BRACKET

1шт.

111

166352A1

BOLT

2шт.

112

150860A1

COLLAR

3шт.

113

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

114

150496A1

MOUNTING CLIP

3шт.

120

150067A1

MOUNTING CLIP

Not Illustrated

3шт.

121

43362

NUT,M8 x 1.25, Cl 10

1шт.

122

162150A1

CLAMP

1шт.
