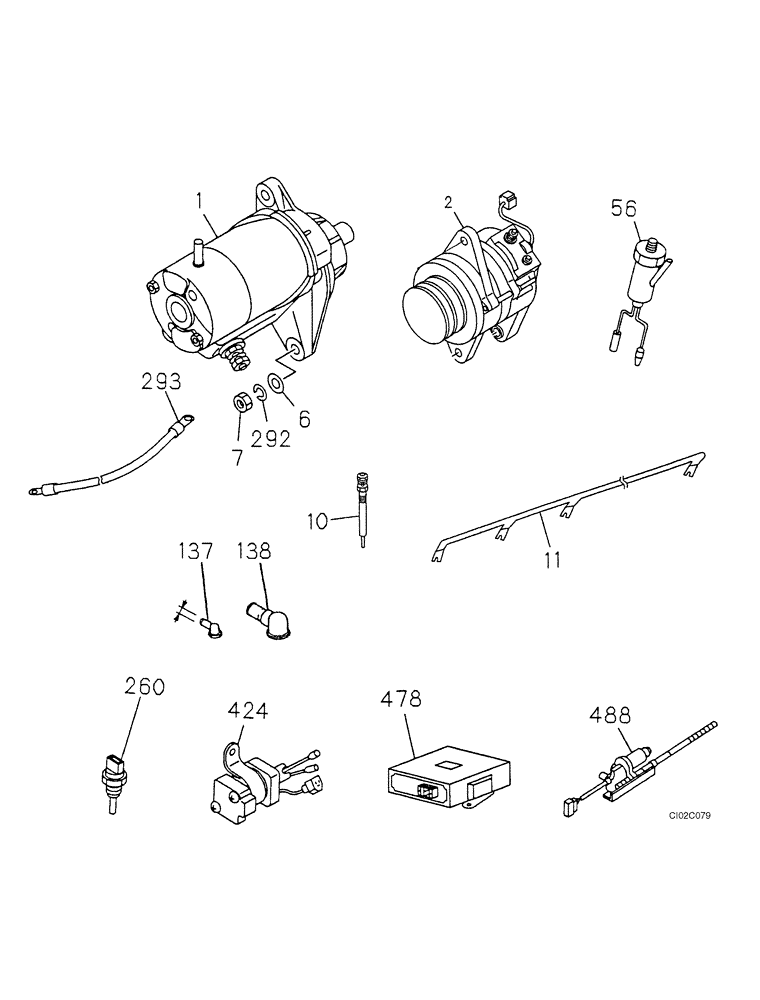

Запчасти Case CX460 (04-03) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

1

87670092

STARTING MOTOR

See Figure 04-01, Replaces 86987088

1шт.

2

438007A1

ALTERNATOR

See Figure 04-02

1шт.

2

438007A1R

REMAN-ALTERNATOR

Reman for new PN 438007A1

1шт.

2

438007A1C

CORE-ALTERNATOR

Return Number

1шт.

6

426397A1

WASHER,14mm ID x 26mm OD x 2.3mm Thk

2шт.

7

86988793

PLUG

2шт.

10

288874A1

GLOW PLUG

6шт.

11

86987364

FITTING

1шт.

56

288883A1

PRESSURE SWITCH

Oil Pressure Sensor

1шт.

137

289983A1

CAP

2шт.

137

289984A1

CAP

4шт.

138

168003A1

DUST CAP

3шт.

260

288817A1

SENSOR

Water Temperature

1шт.

292

86988905

WASHER

1шт.

293

426661A1

CABLE

1шт.

424

426662A1

RELAY

1шт.

478

87399956

ECU

Replaces 87408529

1шт.

488

426664A1

CONTROL BLOCK

Engine Shutoff

1шт.
