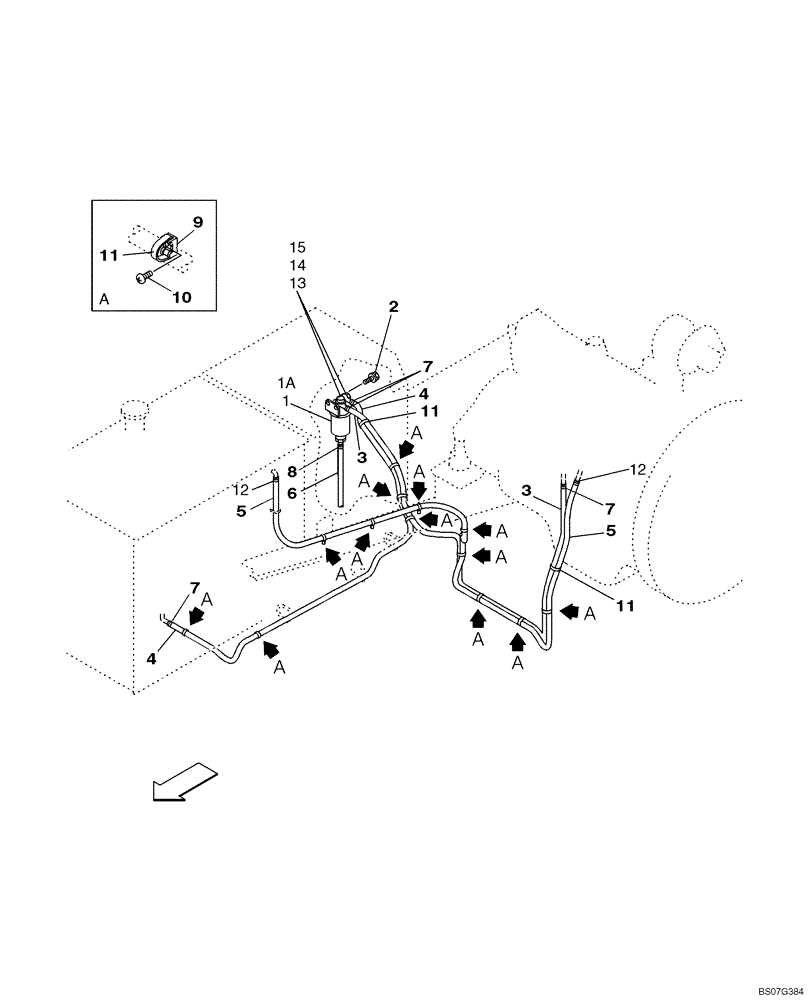

Запчасти Case CX460 (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KTH0594

WATER TRAP

See Figure 03-03; No Longer Available, Order KTH0672

1шт.

1a

KTH0672

WATER TRAP

See Figure 03-03A

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

2шт.

3

KHH11170

FUEL HOSE,2400.00 mm

Replaces KHH0442

1шт.

4

KHH11160

FUEL HOSE,2500.00 mm

Replaces KHH0408

1шт.

5

KHH0486

FUEL HOSE

1шт.

6

157624A1

TUBE,9.5 mm ID, 14.5 mm OD

1шт.

7

157913A1

CLAMP

MOUNTING CLIP

4шт.

8

150067A1

MOUNTING CLIP

1шт.

9

150860A1

COLLAR

13шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

13шт.

11

150496A1

MOUNTING CLIP

15шт.

12

KHH0405

MOUNTING CLIP

2шт.

13

KTH10760

GASKET

2шт.

14

BDJ0290

BANJO BOLT

2шт.

15

KHJ1253

SEALING WASHER

SEAL WASHER

4шт.
