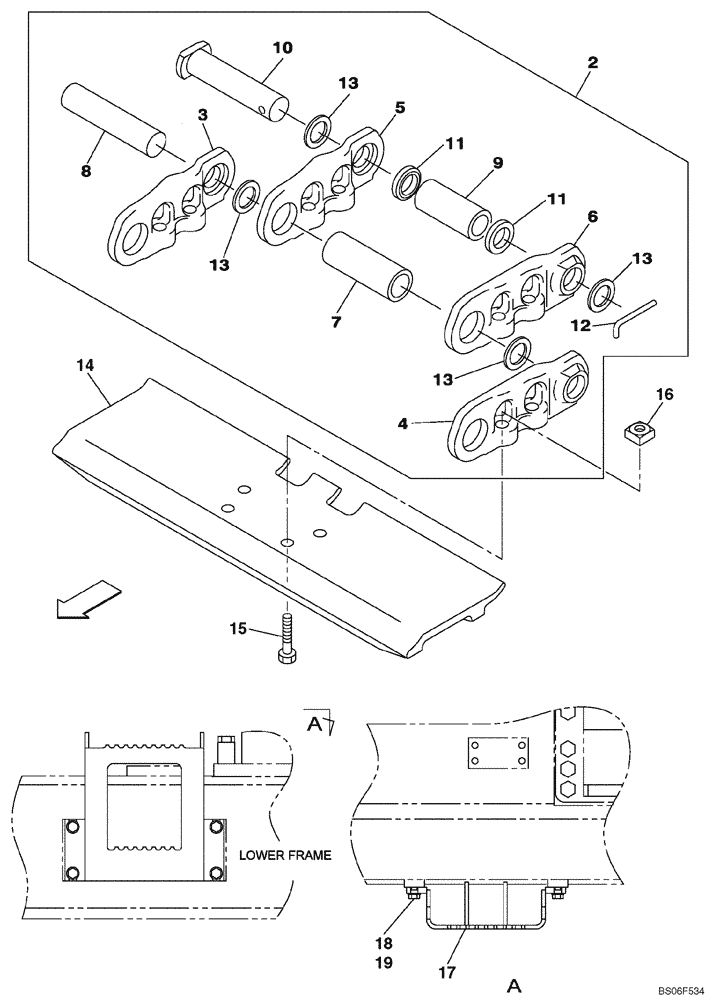

Запчасти Case CX460 (05-06B) - TRACK CHAINS, 750 MM (29-1/2 IN) - FOOTSTEP, P.I.N. DAC0746134 - (RTC) (11) - TRACKS/STEERING

2

KSA1227

CHAIN (CE)

Incl. 3 - 13

2шт.

3

KSA1228

LINK

Right Hand

49шт.

4

KSA1229

LINK

Left Hand

49шт.

5

KSA1230

LINK

Right Hand

1шт.

6

KSA1231

LINK

Left Hand

1шт.

7

KSA1232

BUSHING

49шт.

8

KSA1233

PIN

49шт.

9

KSA1234

BUSHING

1шт.

10

KSA1235

PIN

Master

1шт.

11

KSA1236

COLLAR

2шт.

12

151064A1

LINCH PIN

1шт.

13

KSA1237

SEAL

98шт.

14

KTA1245

TRACK SHOE

700 mm (27-5/8 in)

50шт.

15

KTA1250

BOLT,Spcl, M24 x 77mm

Shoe

200шт.

16

KSA1108

NUT

200шт.

17

KTA10010

STEP

4шт.

18

102R020Y045R

BOLT

M20 x 45

16шт.

19

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

16шт.

KSP0956BECA

LINK

Aftermarket Track Chain Assembly; Also Order KSP0962BECA Nut

1шт.

KSP0962BECA

NUT

200шт.
