(05-06) - TRACK CHAINS, 750 MM (29-1/2 IN) - PRIOR TO P.I.N. DAC0746133

Запчасти Case CX460 (05-06) - TRACK CHAINS, 750 MM (29-1/2 IN) - PRIOR TO P.I.N. DAC0746133 (11) - TRACKS/STEERING

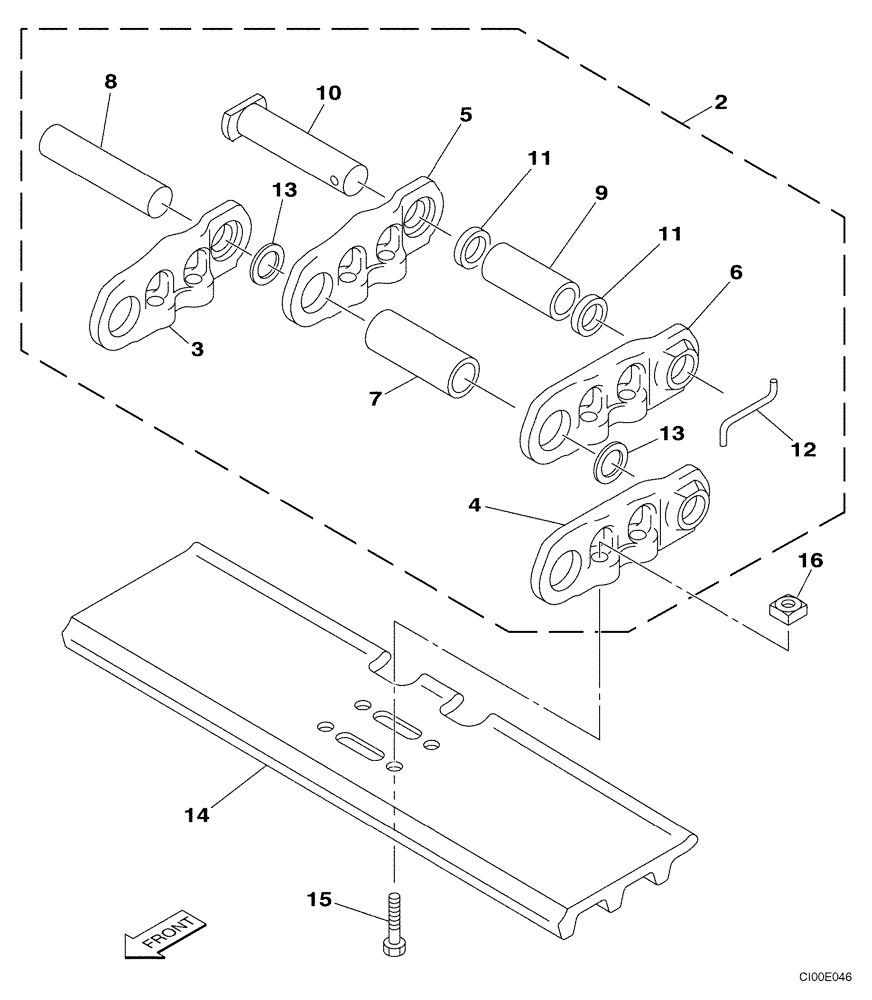

Схема запчастей Case CX460 - (05-06) - TRACK CHAINS, 750 MM (29-1/2 IN) - PRIOR TO P.I.N. DAC0746133 (11) - TRACKS/STEERING
13
13
10
11
7
8
6
5
4
16
15
11
3
14
12
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KSA1227

CHAIN (CE)

Incl. 3 - 13; Production Only, Service With Aftermarket Track Chain Assembly KSP0956BECA

1шт.

3

KSA1228

LINK

Right Hand

49шт.

4

KSA1229

LINK

Left Hand

49шт.

5

KSA1230

LINK

Right Hand

1шт.

6

KSA1231

LINK

Left Hand

1шт.

7

KSA1232

BUSHING

49шт.

8

KSA1233

PIN

49шт.

9

KSA1234

BUSHING

1шт.

10

KSA1235

PIN

Master

1шт.

11

KSA1236

COLLAR

2шт.

12

151064A1

LINCH PIN

1шт.

13

KSA1237

SEAL

98шт.

14

KTA1245

TRACK SHOE

750 mm (29-1/2 in)

50шт.

15

KTA1250

BOLT,Spcl, M24 x 77mm

Shoe

200шт.

16

KSA1108

NUT

200шт.

KSP0956BECA

LINK

Aftermarket Track Assembly

2шт.

KSP0962BECF

NUT

Aftermarket, Used With KSP0962BECA Aftermarket Track Assy

200шт.
