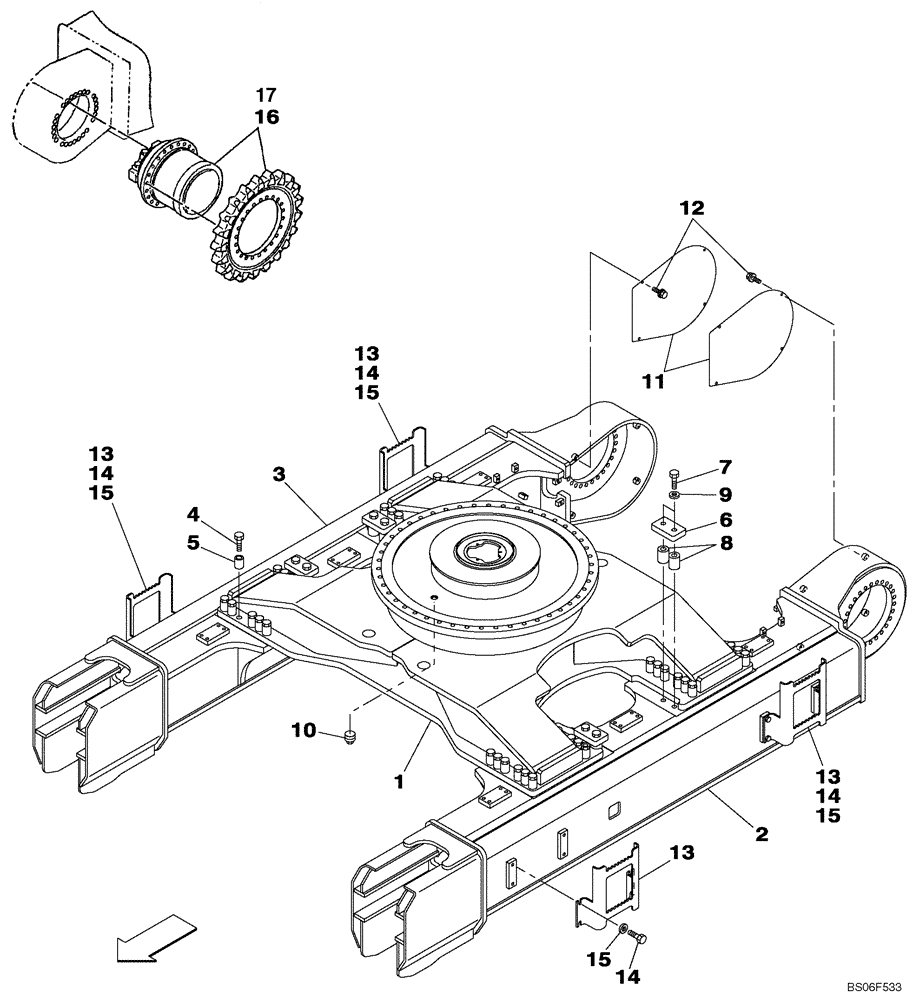

Запчасти Case CX460 (05-02) - UNDERCARRIAGE - RETRACTABLE (11) - TRACKS/STEERING

1

KTA1192

FRAME

1шт.

2

KTA1193

FRAME

1шт.

3

KTA1194

FRAME

1шт.

4

102R030W160N

BOLT

48шт.

5

KTA1197

SPACER

48шт.

6

KUA0123

PLATE

4шт.

7

102R030Y190N

BOLT

M30 x 190

8шт.

8

KUA0126

SPACER

8шт.

9

157545A1

WASHER

8шт.

10

157221A1

PLUG

1шт.

11

KTA1067

COVER

2шт.

12

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

13

KTA1198

STEP

Prior to P.I.N. DAC07461151

4шт.

14

102R020Y035R

BOLT

M20 x 35; Prior to P.I.N. DAC07461151

16шт.

15

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

Prior to P.I.N. DAC07461151

16шт.

16

KTA1070

HYDROSTATIC MOTOR

Transmission Assy; See Figure 06-01; No Longer Available, For Service Order KTA1254, REF 17

2шт.

17

KTA1287

MOTO-REDUCTION GEAR

See Figure 06-01

2шт.
