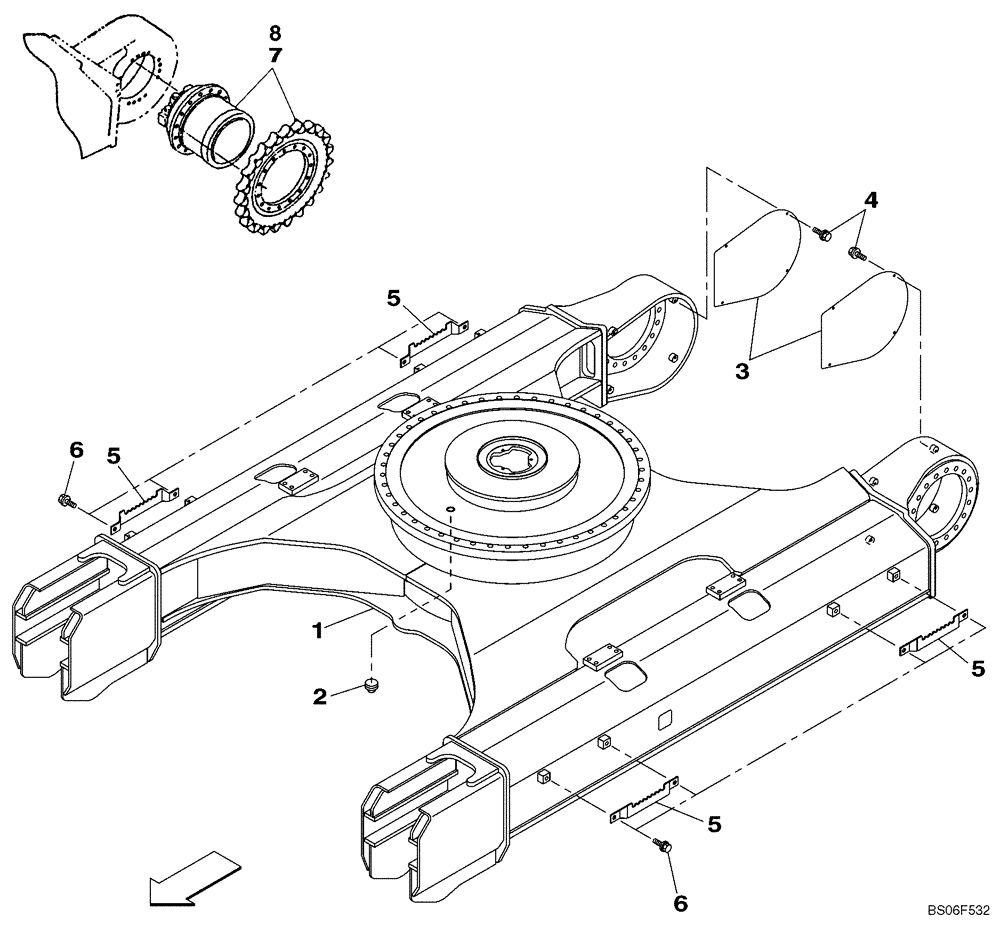

Запчасти Case CX460 (05-01) - UNDERCARRIAGE - STANDARD (11) - TRACKS/STEERING

1

KTA1234

FRAME

1шт.

2

157221A1

PLUG

1шт.

3

KTA1067

COVER

2шт.

4

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

8шт.

5

KSA1143

STEP

4шт.

6

105R020Y050R

BOLT

8шт.

7

KTA1070

HYDROSTATIC MOTOR

Transmission Assy; See Figure 06-01; No longer Available, For Service Order KTA1287, Ref 8

2шт.

8

KTA1287

MOTO-REDUCTION GEAR

See Figure 06-01

2шт.
