Запчасти Case CX460 (09-60) - DECALS (09) - CHASSIS/ATTACHMENTS

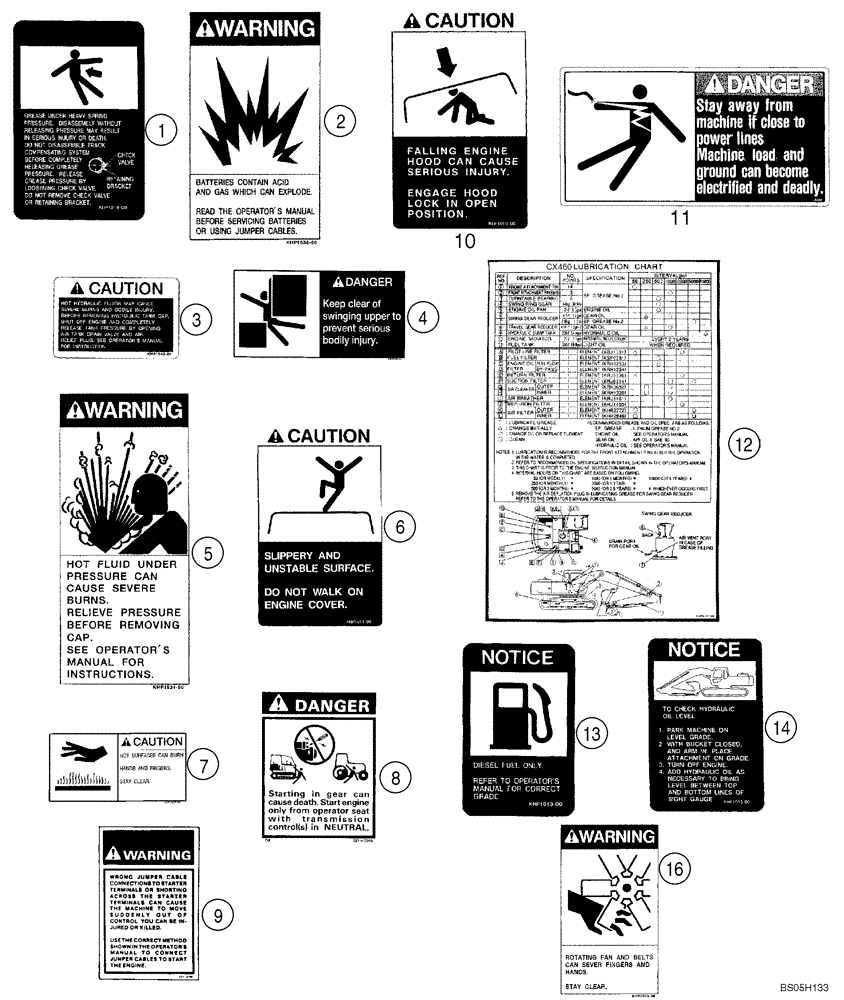

Схема запчастей Case CX460 - (09-60) - DECALS (09) - CHASSIS/ATTACHMENTS
14
8
6
13
7
1
12
5
9
16
11
10
2
3
4

Артикул

Название

Примечание

Количество

1

167327A1

WARNING DECAL

Grease Under Heavy Spring Pressure

2шт.

2

KHP1536

WARNING DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

3

KHP1542

WARNING DECAL

Caution, Hot Liquid Hazard

1шт.

4

KHP1532

WARNING DECAL

Danger, Keep Clear

2шт.

5

KHP1534

WARNING DECAL

Warning, Hot Fluid Under Pressure

1шт.

6

KHP1011

DECAL

Caution, Slippery And Unstable Surface

1шт.

7

KHP1535

WARNING DECAL

Caution, Hot Surfaces

2шт.

8

321-7040

DANGER DECAL

Starting in gear

1шт.

9

321-6872

DECAL

Warning, Jumper Cables

1шт.

10

KHP1010

DECAL

Caution, Falling Engine Hood

1шт.

11

167324A1

WARNING DECAL

Danger, Stay Away From Machine If Close To Power Lines

1шт.

12

KTP10080

DECAL

Lubrication Chart; Replaces KTP1111, KTP1151

1шт.

13

167326A1

WARNING DECAL

Notice, Diesel Fuel

1шт.

14

167328A1

DECAL

Notice, Check Hydraulic Fluids

1шт.

16

KHP1533

WARNING DECAL

Warning, Rotating Fan

1шт.

17

KTP1089

DECAL

Not Illustrated

1шт.

Выбрано товаров: 16
