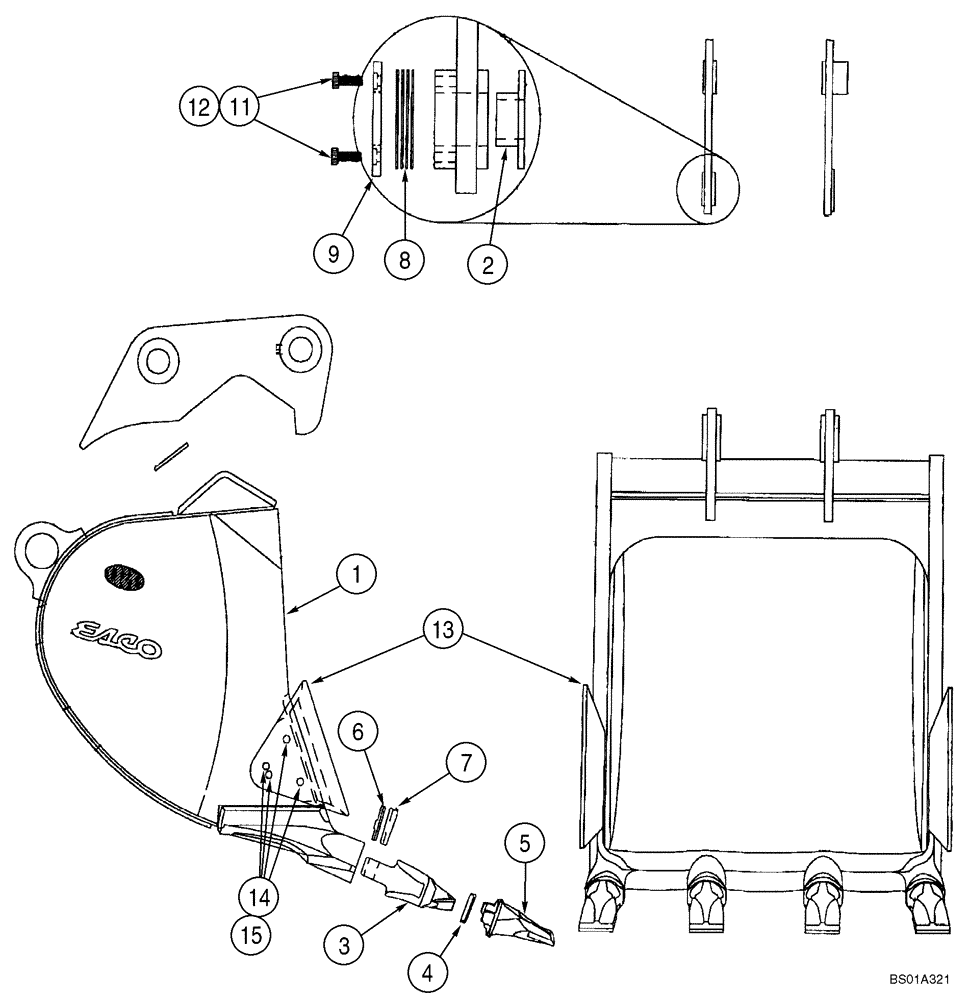

Запчасти Case CX460 (09-56) - BUCKETS, ESCO - HEAVY DUTY CAST BUCKET (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bucket, 1,45 cu m (1,90 cu yd); With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 1,73 cu m (2,27 cu yd); With 5 Teeth

1шт.

2

372039A1

BUSHING

1шт.

3

378940A1

ADAPTER

Tooth

5шт.

4

254104A1

BUCKET TOOTH KEY

5шт.

5

254100A1

BUCKET TOOTH

5шт.

6

S107814

SPOOL

Fluted

5шт.

7

S107813

WEDGE

Fluted

5шт.

8

378638A1

SHIM

3шт.

9

378639A1

PLATE

1шт.

10

378637A1

PIN

Not Illustrated

2шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

12

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

4шт.

378662A1

KIT

Shroud; Incl. 13 - 15

1шт.

13

244962A1

BLADE

2шт.

14

232-41314

LOCK NUT,7/8"-9, GC

6шт.

15

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

7/8 x 2-3/4

6шт.

378645A1

KIT

Adjustment; Incl. 2, 8 - 12

1шт.
