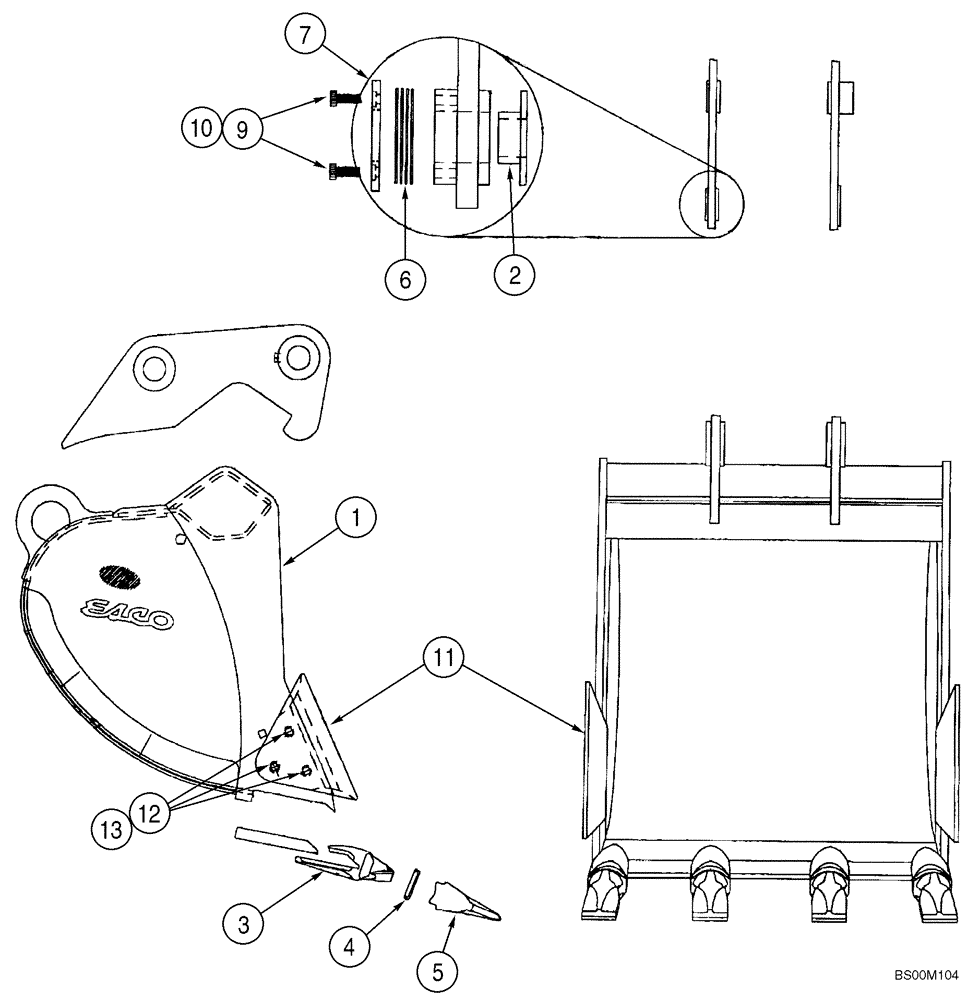

Запчасти Case CX460 (09-54) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371521A1

BUCKET

1.32 cu m (1.73 cu yd); With 4 Teeth

1шт.

1

371522A1

BUCKET

1.60 cu m (2.10 cu yd); With 5 Teeth

1шт.

1

371523A1

BUCKET

1.89 cu m (2.48 cu yd); With 5 Teeth

1шт.

1

371524A1

BUCKET

2.18 cu m (2.85 cu yd); With 6 Teeth

1шт.

1

371526A1

BUCKET

2.48 cu m (3.24 cu yd); With 6 Teeth

1шт.

2

372039A1

BUSHING

1шт.

3

254099A1

ADAPTER

Tooth

4-6шт.

4

254104A1

BUCKET TOOTH KEY

4-6шт.

5

254100A1

BUCKET TOOTH

4-6шт.

6

378638A1

SHIM

3шт.

7

378639A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

4шт.

378662A1

KIT

Shroud; Incl. 11 - 13

1шт.

11

244962A1

BLADE

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

7/8 x 2-3/4

6шт.

378645A1

KIT

Adjustment; Incl. 2, 6 - 10

1шт.
