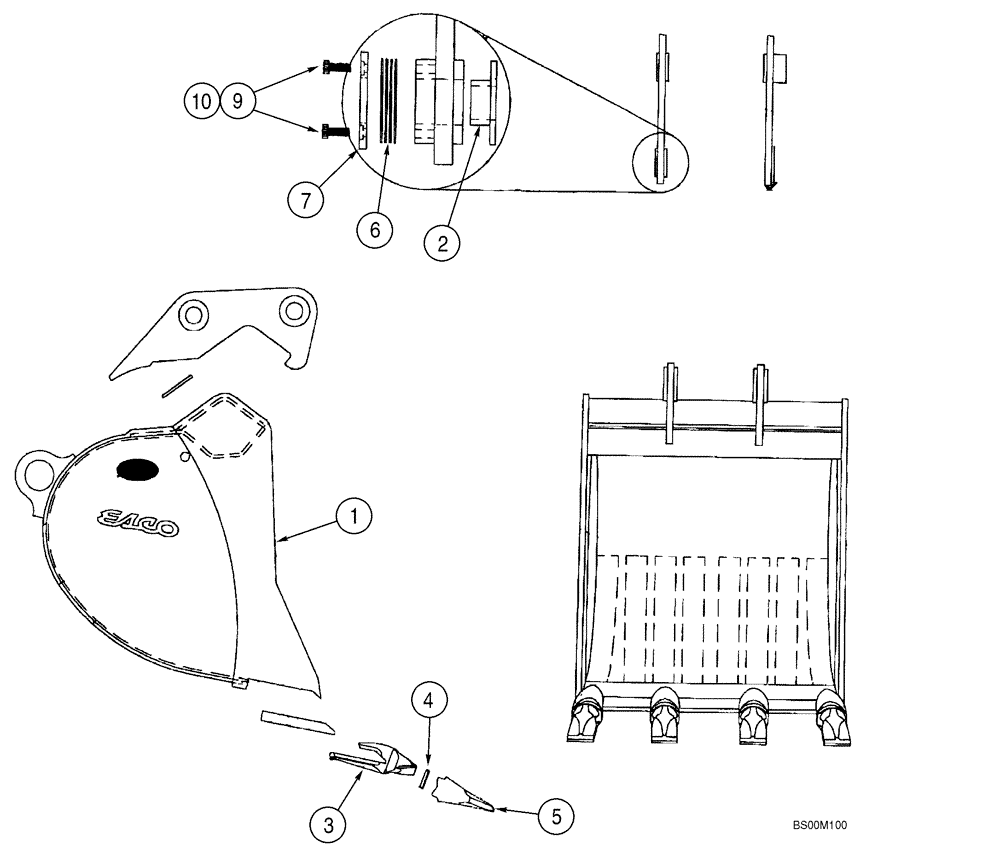

Запчасти Case CX460 (09-53) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371513A1

BUCKET

1.35 cu m (1.76 cu yd); With 4 Teeth

1шт.

1

371514A1

BUCKET

1.64 cu m (2.14 cu yd); With 5 Teeth

1шт.

1

371515A1

BUCKET

1.93 cu m (2.52 cu yd); With 5 Teeth

1шт.

1

371516A1

BUCKET

2.22 cu m (2.91 cu yd); With 6 Teeth

1шт.

1

371517A1

BUCKET

2.52 cu m (3.29 cu yd); With 6 Teeth

1шт.

1

371518A1

BUCKET

3.10 cu m (4.05 cu yd); With 7 Teeth

1шт.

2

372039A1

BUSHING

1шт.

3

254091A1

ADAPTER

Tooth

4-7шт.

4

254098A1

BUCKET TOOTH KEY

4-7шт.

5

254093A1

TOOTH

4-7шт.

6

378638A1

SHIM

3шт.

7

378639A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

4шт.

378645A1

KIT

Incl. 2, 6 - 10

1шт.
