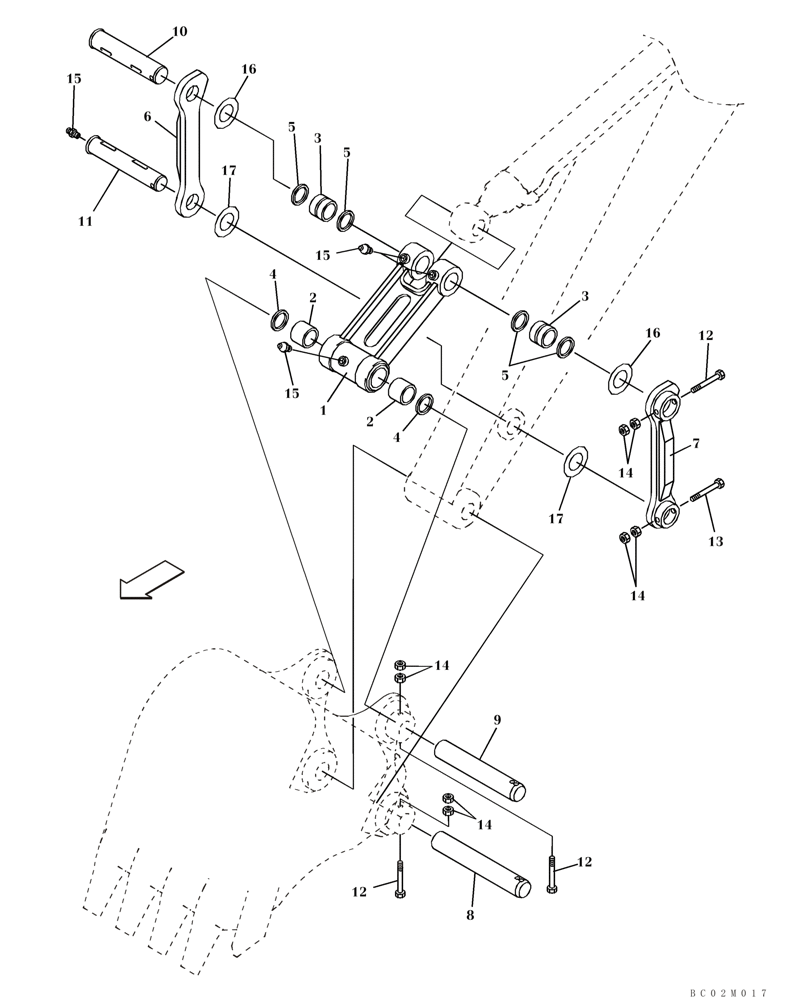

Запчасти Case CX460 (09-51) - BUCKET LINKAGE, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

KTV1294

POWER ARM

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

LINK

1шт.

2

KTV1271

BUSHING

2шт.

3

151345A1

BUSHING,110mm ID x 125mm OD x 130mm L

2шт.

4

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

5

162103A1

SEAL,110mm ID x 125mm OD x 5mm Thk

4шт.

6

KTV1309

LINKAGE YOKE

1шт.

7

KTV1310

LINKAGE YOKE

1шт.

8

KTV1324

PIN

1шт.

9

KTV1325

PIN

1шт.

10

KTV1415

PIN

Replaces KTV1269

1шт.

11

KTV1270

PIN

1шт.

12

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

3шт.

13

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

1шт.

14

829-13424

NUT,M24 x 2, Cl 10

8шт.

15

153630A1

LUBE NIPPLE

Grease

4шт.

16

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

2шт.

17

KTP0427

SHIM

2шт.
