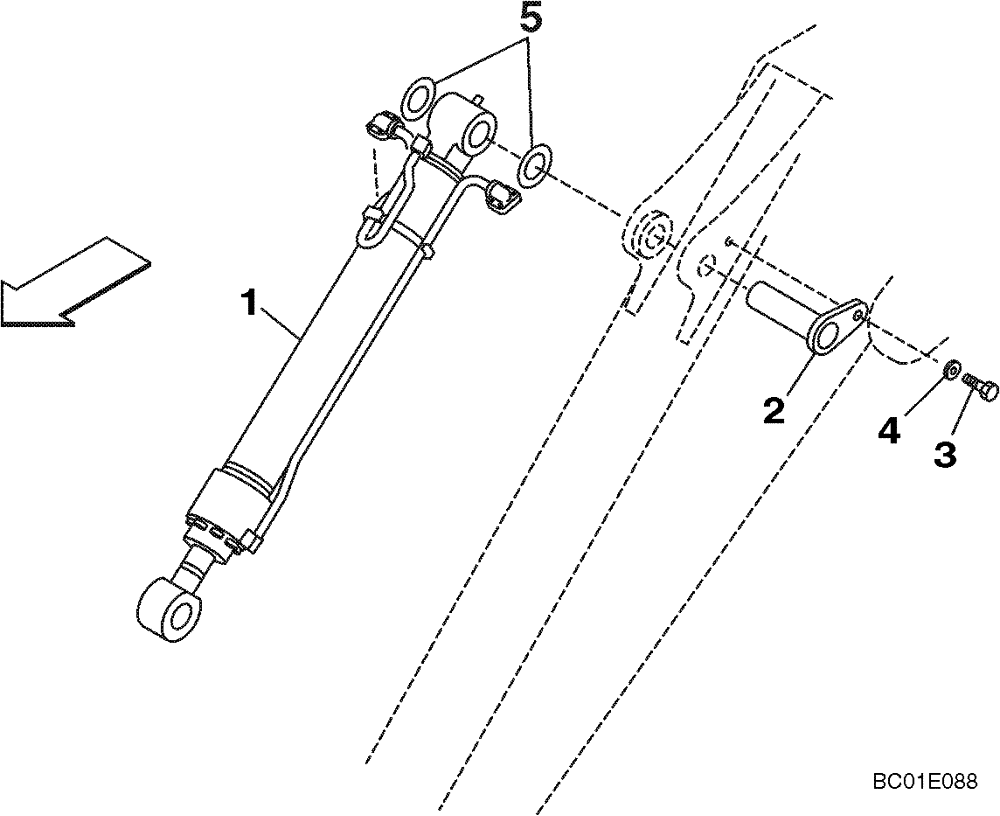

Запчасти Case CX460 (09-49) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KTV1459

CYLINDER ASSY.

Bucket, See Figure 08-95; Replaces KTV1410

1шт.

2

KTV1416

PIN

1шт.

3

KTV1185

SPACER

1шт.

4

102R020Y035R

BOLT

M20 x 35

1шт.

5

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

1шт.
