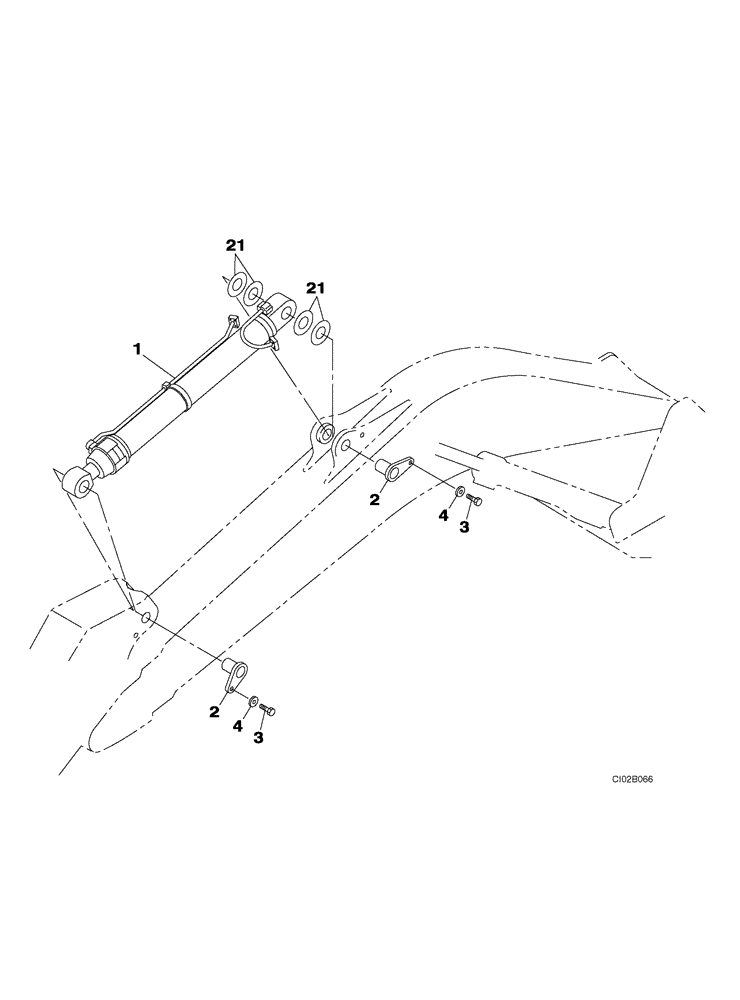

Запчасти Case CX460 (09-48) - ARM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

KTV1461

HYDRAULIC CYLINDER

Arm; Models Without Load Hold; See Figure 08-97; Replaces KTV1409

1шт.

1

KTV1462

HYDRAULIC CYLINDER

Arm; Models With Load Hold; See Figure 08-96; Replaces KTV1406

1шт.

2

KTV1273

PIN

2шт.

3

102R020Y035R

BOLT

M20 x 35

2шт.

4

KTV1185

SPACER

2шт.

21

KMV1518

SHIM,0.6mm Thk

1шт.
