/ / / / / / / / (09-32) - CAB - WINDOW, REAR

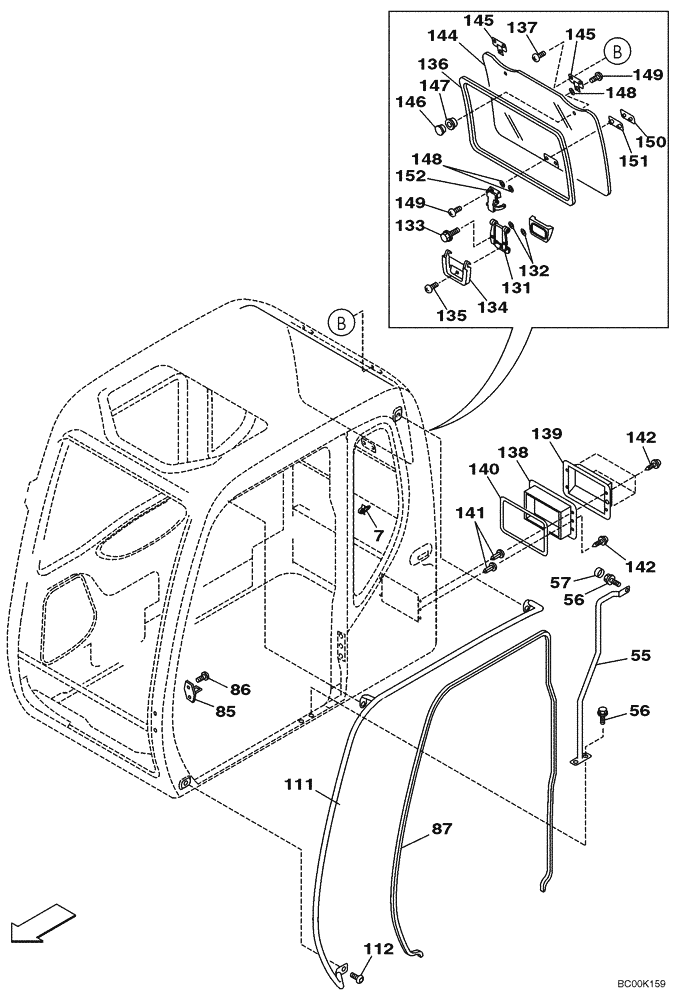

Запчасти Case CX460 (09-32) - CAB - WINDOW, REAR (09) - CHASSIS/ATTACHMENTS
150
133
55
142
146
142
148
131
112
87
56
57
134
136
137
151
138
86
135
149
140
111
144
145
132
152
145
148
139
85
147
149
141
56
55
KHN2677
HANDLE
1шт.
56
KHN2678
BOLT,Spcl
M10 x 25
3шт.
57
KHN2679
CAP
1шт.
85
KHN2701
CATCH PLATE
1шт.
86
KHN2702
SCREW,Spcl
M8 x 20
2шт.
87
KHN2703
WEATHERSTRIP
1шт.
111
KHN2932
HANDLE
1шт.
112
KHN2727
BOLT,Spcl
M12 x 30
2шт.
131
KHN2754
BRACKET
1шт.
132
KHN2755
WASHER
2шт.
133
KHN2756
BOLT,Spcl
M6 x 16
2шт.
134
KHN2757
HANDLE
1шт.
135
KHN2758
SCREW,Spcl
M5 x 10
1шт.
136
KHN2759
WEATHERSTRIP
1шт.
137
KHN2768
SCREW,Spcl
M6 x 1 x 16
4шт.
138
KHN2769
COVER
1шт.
139
KHN2770
HOUSING
1шт.
140
KHN2771
SEAL
1шт.
141
KHN2772
GROMMET
5шт.
142
KHN2773
SCREW,Spcl
M6 x 16
5шт.
KHN2926
WINDOW ASSY
Incl. 144 - 152
1шт.
144
KHN3006
GLASS
1шт.
145
KHN2760
HINGE
2шт.
146
KHN2761
NUT
2шт.
147
KHN2762
GROMMET
2шт.
148
KHN2763
WASHER
4шт.
149
KHN2931
SCREW,Spcl
4шт.
150
KHN2765
STIFFENER
1шт.
151
KHN2766
GASKET
1шт.
152
KHN2767
HANDLE
1шт.
