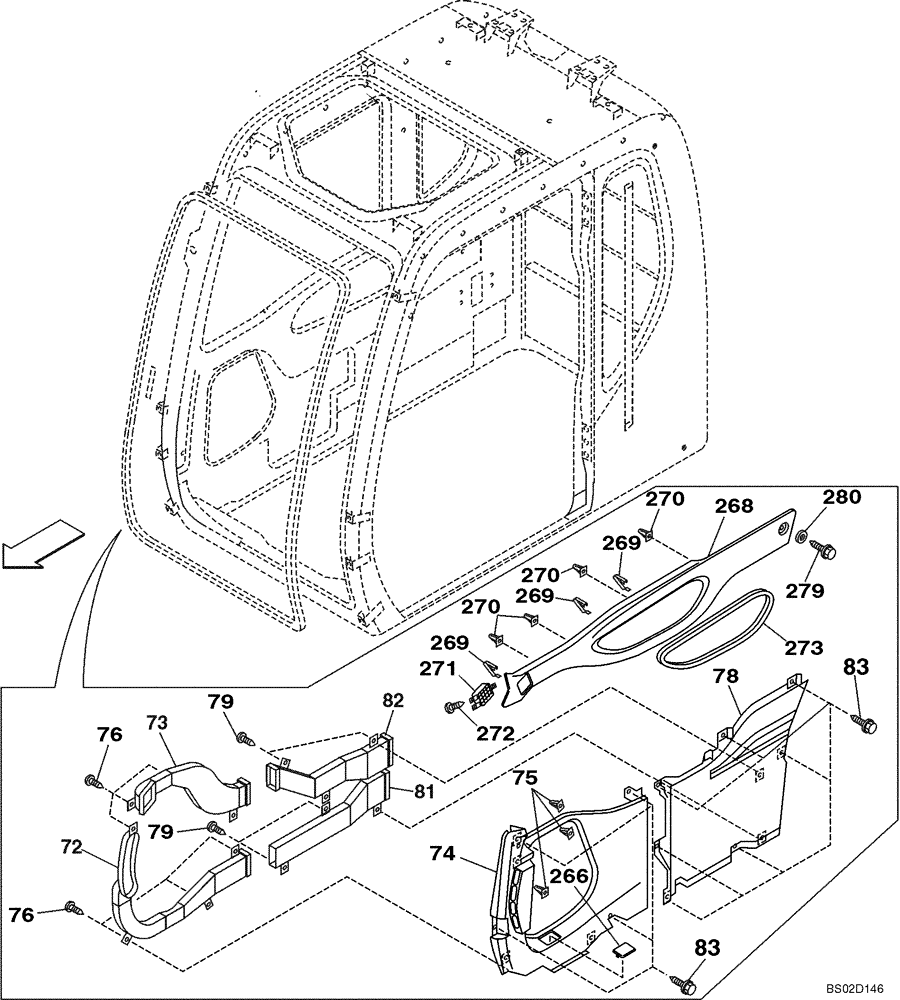

Запчасти Case CX460 (09-29) - CAB - DUCTS AND TRIM (P.I.N. DAC0746101 - DAC0746145) (09) - CHASSIS/ATTACHMENTS

72

KHR4278

DUCT

Replaces KHR2764

1шт.

73

KHR4276

DUCT

Replaces KHR2767

1шт.

KHN2695

GASKET

Incl. 74 - 75

1шт.

74

KHN2243

TRIM PANEL

1шт.

75

KHN2292

COLLAR

3шт.

76

KHR2739

SELF-TAP SCREW

6шт.

KHN2698

GASKET

Padding Assembly, Incl. 78, 79

1шт.

78

KHN2235

TRIM PANEL

1шт.

79

KHR2739

SELF-TAP SCREW

6шт.

81

KHR4279

DUCT

Replaces KHR2765

1шт.

82

KHR4277

DUCT

Replaces KHR2768

1шт.

83

KHN2700

BOLT,Spcl

12шт.

266

KHN2234

TRIM PANEL

1шт.

268

KHN3021

TRIM PANEL

1шт.

269

KHN2293

COLLAR

3шт.

270

KHN2292

COLLAR

4шт.

271

KHN2232

BOX

1шт.

271a

KHR2517

DIFFUSER

Grill, Fits Into Ref. 271, KHN2232 Box; Not Illustrated; See Figure 09-23

1шт.

272

KHN3022

SCREW

3шт.

273

KHN2294

SEAL

1шт.

279

KHN2316

BOLT

1шт.

280

150529A1

WASHER

1шт.
