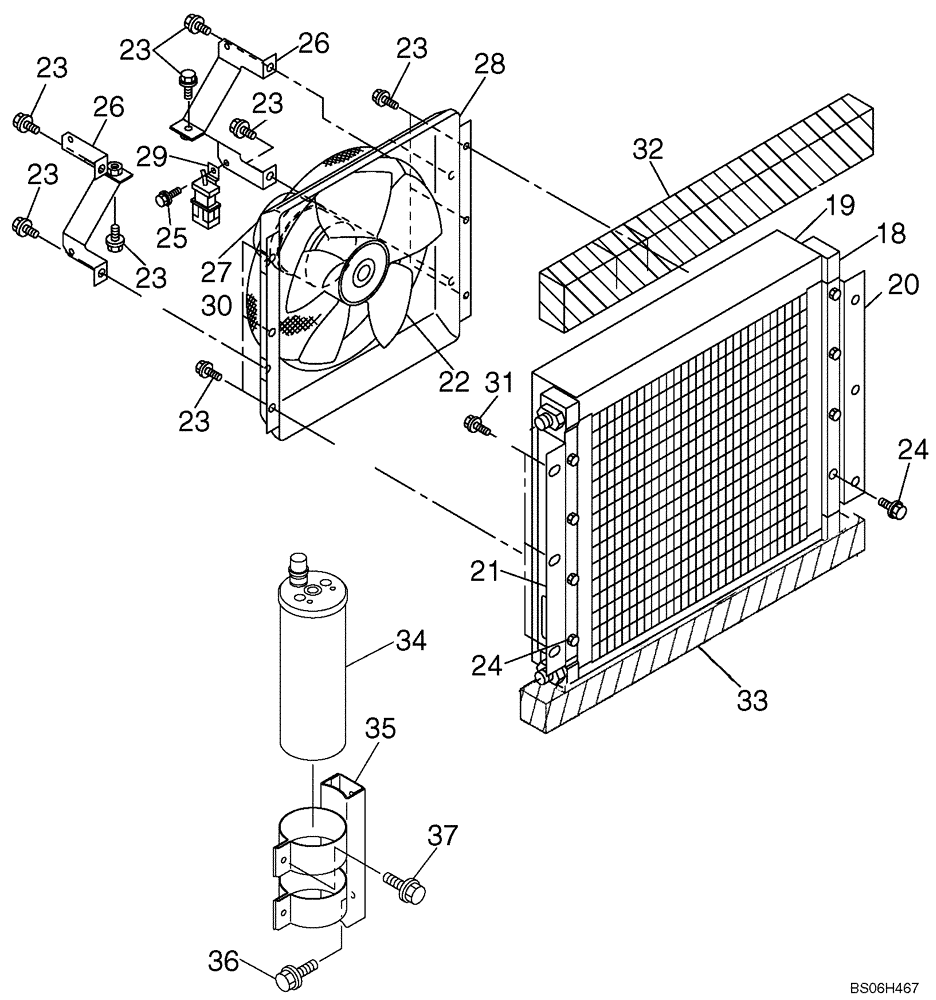

Запчасти Case CX460 (09-27) - CAB - AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

KHR2989

CONDENSER

Incl. 18 - 30

1шт.

18

KHR15300

CONDENSER

Condenser

1шт.

19

KHR15310

SUPPORT

1шт.

20

KHR15320

SUPPORT

1шт.

21

KHR15330

SUPPORT

1шт.

22

KHR15340

FAN

1шт.

23

KHR15350

BOLT,Spcl

M6 x 16

12шт.

24

KHR15360

BOLT,Spcl

M6 x 50

8шт.

25

KHR15370

BOLT,Spcl

M5 x 12

1шт.

26

KHR15380

SUPPORT

2шт.

27

KHR15390

FOAM INSULATION

1шт.

28

KHR15400

COVER

1шт.

29

KHR15410

SUPPORT

1шт.

30

KHR15420

ELECTRIC MOTOR

1шт.

31

167182A1

BOLT,Sems, M8 x 25mm

6шт.

32

KSR0918

SEAL

Replaces KTR0529

1шт.

33

KTR0530

SEAL

1шт.

34

KHR13590

RECEIVER-DRYER

See Figure 09-27, Replaces 167528A1, KHR3751

1шт.

35

KHR13600

BRACKET

Replaces 159635A1

1шт.

36

167320A1

BOLT,Spcl, M8 x 20mm

2шт.

37

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.
