Запчасти Case CX460 (09-24) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

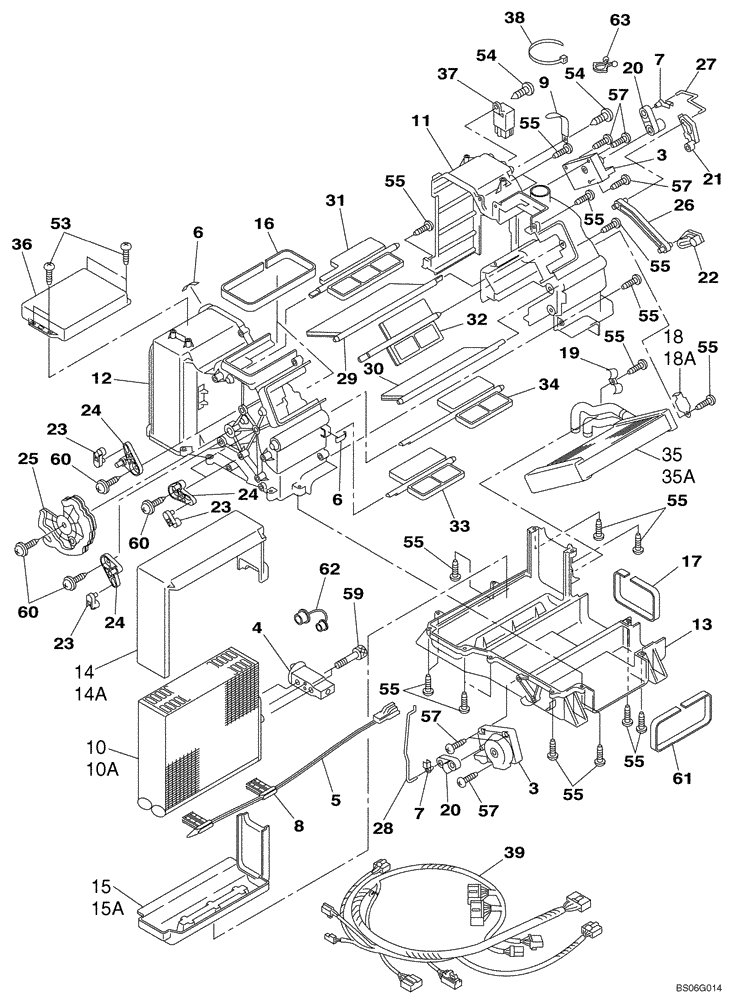

Схема запчастей Case CX460 - (09-24) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS
26
38
35a
7
17
13
30
10
8
18
57
55
14
21
55
29
23
10a
57
3
24
63
12
9
23
28
55
39
34
57
24
22
54
15a
7
4
60
53
6
27
20
16
55
55
23
31
59
19
37
20
18a
62
6
25
60
55
11
5
55
14a
61
35
55
57
55
15
32
54
60
36
55
55
3
55
24
33

Артикул

Название

Примечание

Количество

KHR4135

AIR CONDITIONER

Incl. 3 - 63; Also Includes Parts On Figure 09-25; Replaces KHR2756

1шт.

3

KHR2802

MOTOR, ELECTRIC

2шт.

4

KHR2803

VALVE

See Fig 09-26 for O-rings

1шт.

5

KHR2804

SENSOR

1шт.

6

KHR2805

CLAMP

2шт.

7

KHR2806

HOLDER

2шт.

8

KHR2807

HOLDER

2шт.

9

KHR2808

CLAMP

1шт.

10

KHR2809

COOLER

No Longer Used, Order KHR4115, REF 10A

1шт.

10a

KHR4115

COOLER

Replaces KHR2809

1шт.

11

KHR2810

HOUSING

1шт.

12

KHR2811

HOUSING

1шт.

13

KHR2812

HOUSING

1шт.

14

KHR2813

FOAM INSULATION

Used With Ref 10, KHR2809

1шт.

14a

KHR4116

OUTER SHIELD

Used With Ref 10A, KHR4115

1шт.

15

KHR2814

FOAM INSULATION

Used With Ref 10, KHR2809

1шт.

15a

KHR4117

OUTER SHIELD

Used With Ref 10A, KHR4115

1шт.

16

KHR2815

STRIP-GASKET

2шт.

17

KHR2816

STRIP-GASKET

1шт.

18

KHR2817

BRACKET

Used With Ref 35

1шт.

18a

KHR11400

CONSOLE

Used With Ref 35A

1шт.

19

KHR2818

CLAMP

1шт.

20

KHR2819

LEVER

2шт.

21

KHR2820

LEVER

1шт.

22

KHR2821

LEVER

1шт.

23

KHR2822

LEVER

3шт.

24

KHR2823

LEVER

3шт.

25

KHR2824

CAM

1шт.

26

KHR2825

THREADED ROD

1шт.

27

KHR2826

THREADED ROD

1шт.

28

KHR2827

THREADED ROD

1шт.

29

KHR2828

SHUTTER

1шт.

30

KHR2829

SHUTTER

1шт.

31

KHR2830

SHUTTER

1шт.

32

KHR2831

SHUTTER

1шт.

33

KHR2832

SHUTTER

1шт.

34

KHR2833

SHUTTER

1шт.

35

KHR2834

RADIATOR, HEATER

No Longer Available, For Service Order KHR11390, Ref 35A And KHR11400, Ref 18A

1шт.

35a

KHR11390

RADIATOR, HEATER

1шт.

36

KHR2835

ECU

1шт.

37

KHR2836

RELAY

1шт.

38

KHR2838

MOUNTING CLIP

3шт.

39

KHR2839

HARNESS

1шт.

53

KHR2855

SCREW

4шт.

54

KHR2856

SCREW

2шт.

55

KHR2857

SELF-TAP SCREW

20шт.

57

KHR2859

SELF-TAP SCREW

6шт.

59

KHR2861

BOLT,Hex Skt Hd

2шт.

60

KHR2862

SELF-TAP SCREW

5шт.

61

KHR2837

PACKING

1шт.

62

KHR2853

CAP

1шт.

63

KHR2854

CLAMP

1шт.

Выбрано товаров: 52
