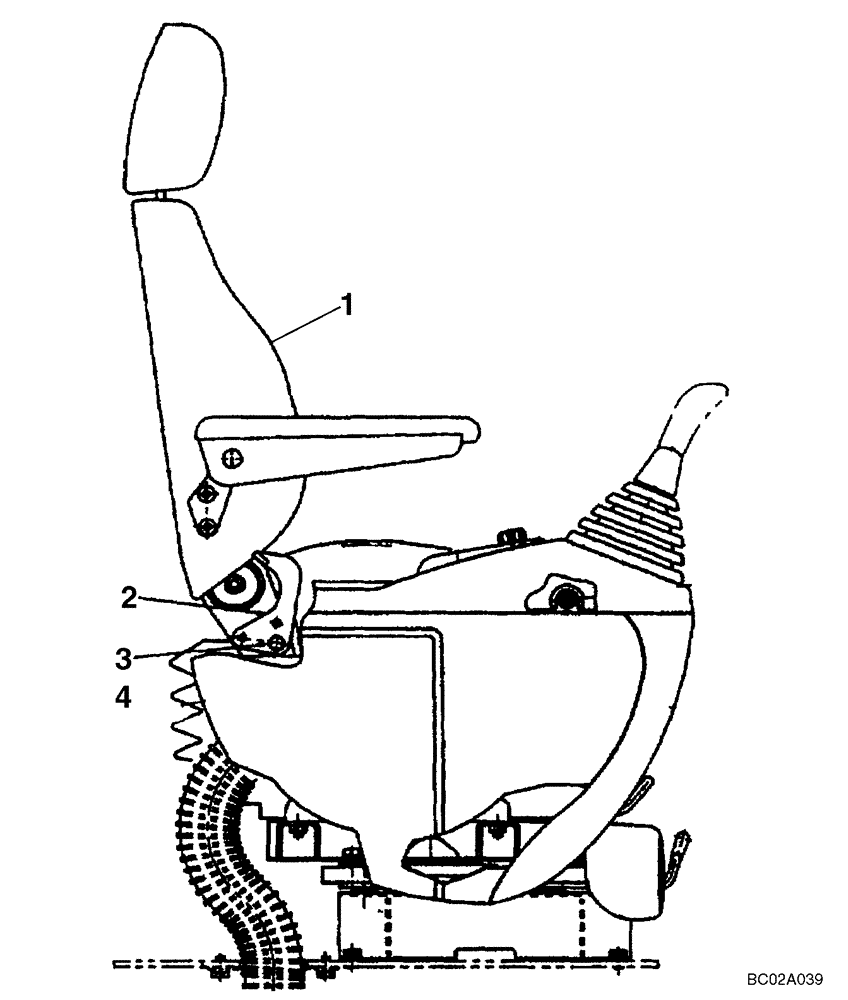

Запчасти Case CX460 (09-18) - SEAT, LOCKING MECHANISM (09) - CHASSIS/ATTACHMENTS

1

300642A1

SEAT ASSY.

Grey, See Figure 09-17

1шт.

87344650

DRIVER SEAT

Wheat, See Figure 09-17A

1шт.

2

KHN3003

LOCKING DEVICE

Seat

1шт.

3

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

1шт.

4

150811A1

WASHER

M12

1шт.
