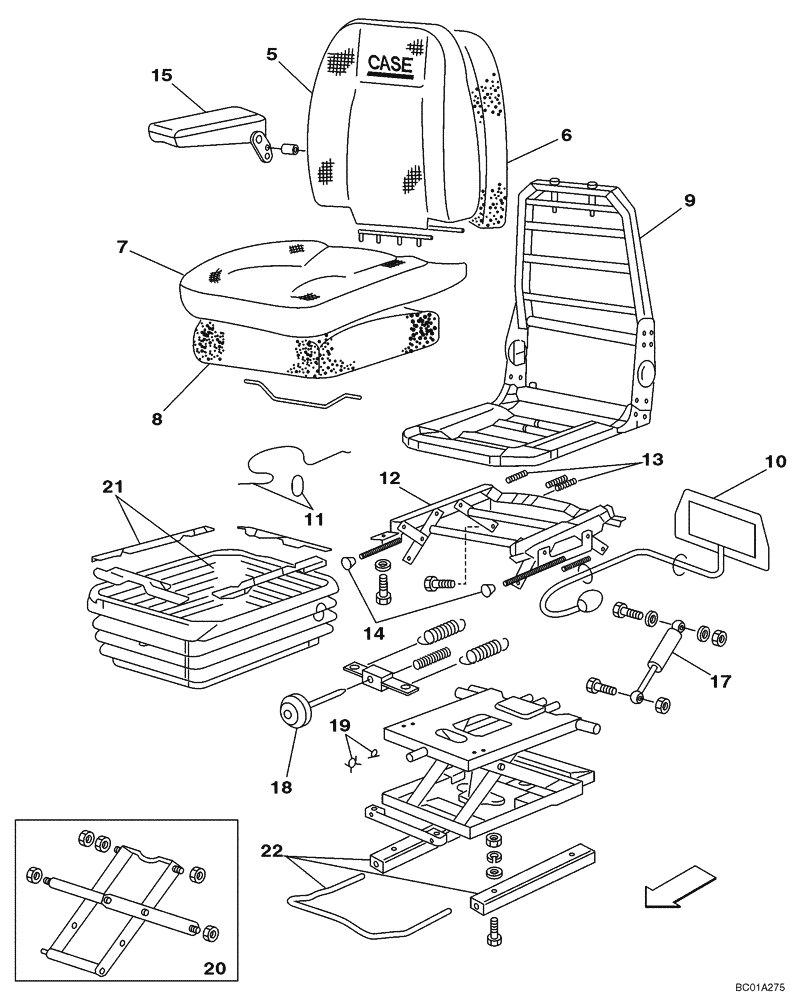

Запчасти Case CX460 (09-17) - SEAT (09) - CHASSIS/ATTACHMENTS

300642A1

SEAT ASSY.

Grey, Incl. 1 - 22; Also Includes Parts On Figure 09-16, REF 2, 24 - 27

1шт.

307040A1

SEAT ASSY.

Incl. 5 - 11

1шт.

5

307042A1

DRIVER'S SEAT COVER

Backrest

1шт.

6

H4841461

FOAM

1шт.

7

F2547002

SEAT COVER

Seat Cushion

1шт.

8

J4841462

FOAM

1шт.

9

307043A1

FRAMEWORK

1шт.

10

307044A1

KIT

Backrest Adjustment

1шт.

11

D2447088

CABLE

Recliner Control

1шт.

307045A1

KIT

Height Riser; Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Frame

1шт.

13

307046A1

KIT

Height Riser Springs

1шт.

14

307047A1

SET OF PARTS

Height Adjustment

1шт.

15

307048A1

ARMREST ASSY.

Right Hand and Left Hand

1шт.

307049A1

SUSPENSION

Suspension Assy; Incl. 16 - 20

1шт.

17

L4143253

SET OF PARTS

Shock Absorber

1шт.

18

B2447086

SET OF PARTS

Weight Adjustment

1шт.

19

307050A1

KIT

Stop

1шт.

20

307051A1

BEARING ASSY

Height Adjustment

1шт.

21

307052A1

KIT

Boot

1шт.

22

307053A1

KIT

Seat Slide Rails

1шт.
