Запчасти Case CX460 (09-13) - MAT, FLOOR - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

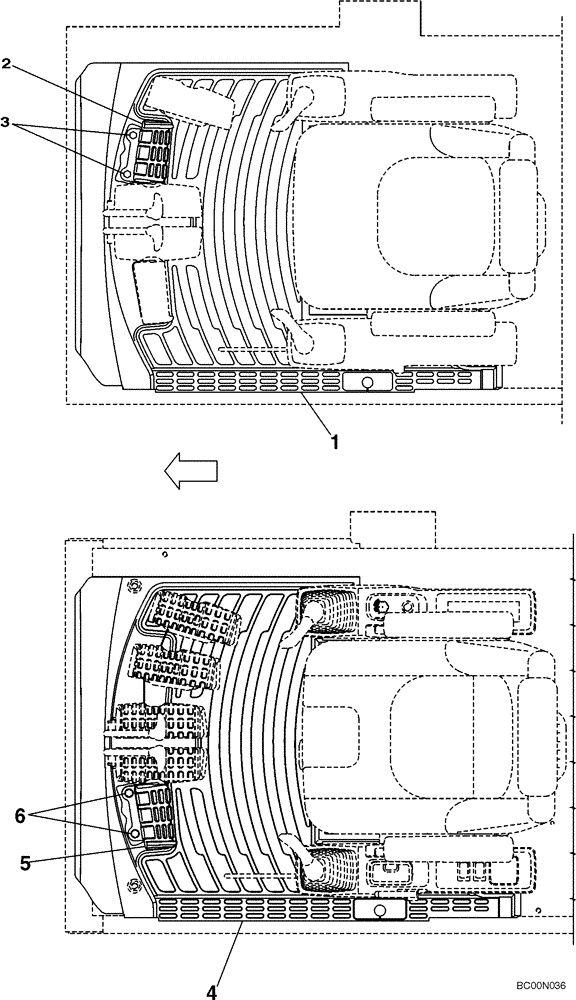

Схема запчастей Case CX460 - (09-13) - MAT, FLOOR - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
3
1
6
5
4
2

Артикул

Название

Примечание

Количество

MODELS WITHOUT AUXILIARY HYDRAULICS

1шт.

1

KHJ1614

FLOOR MAT

1шт.

2

KHJ1638

FOOT REST

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

MODELS WITH AUXILIARY HYDRAULICS

1шт.

4

KHJ1910

FLOOR MAT

1шт.

5

KHJ1636

FOOT REST

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

Выбрано товаров: 10
