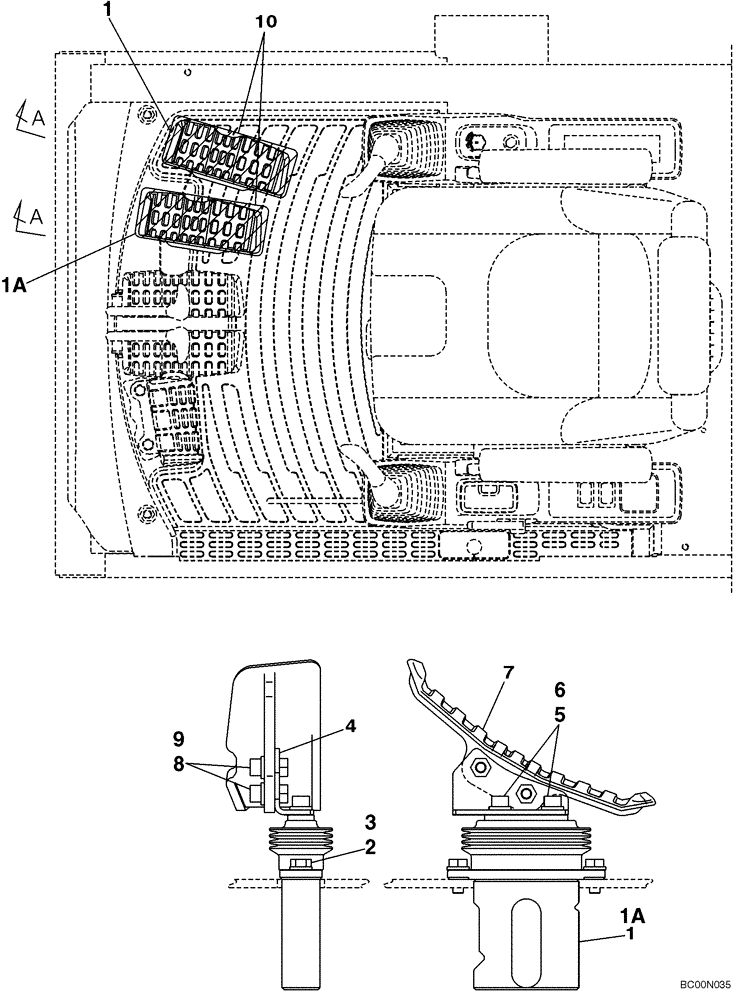

Запчасти Case CX460 (09-12) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS/ATTACHMENTS

MODELS WITH AUXILIARY HYDRAULICS

1шт.

1

KRJ5864

CONTROL BLOCK

Single Pedal Travel Control; See Figure 08-85

1шт.

1a

KRJ5864

CONTROL BLOCK

Auxiliary Control; See Figure 08-85

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

M10 x 25; 10.9

4шт.

3

150604A1

WASHER

4шт.

4

KHJ1643

BRACKET

2шт.

5

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

6

150604A1

WASHER

4шт.

7

KHJ1629

PEDAL

2шт.

8

KHJ1820

BOLT,Hex Skt Hd

4шт.

9

150604A1

WASHER

4шт.

10

163782A1

SKIRT COVER

2шт.
