Запчасти Case CX460 (09-10) - CONTROLS - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

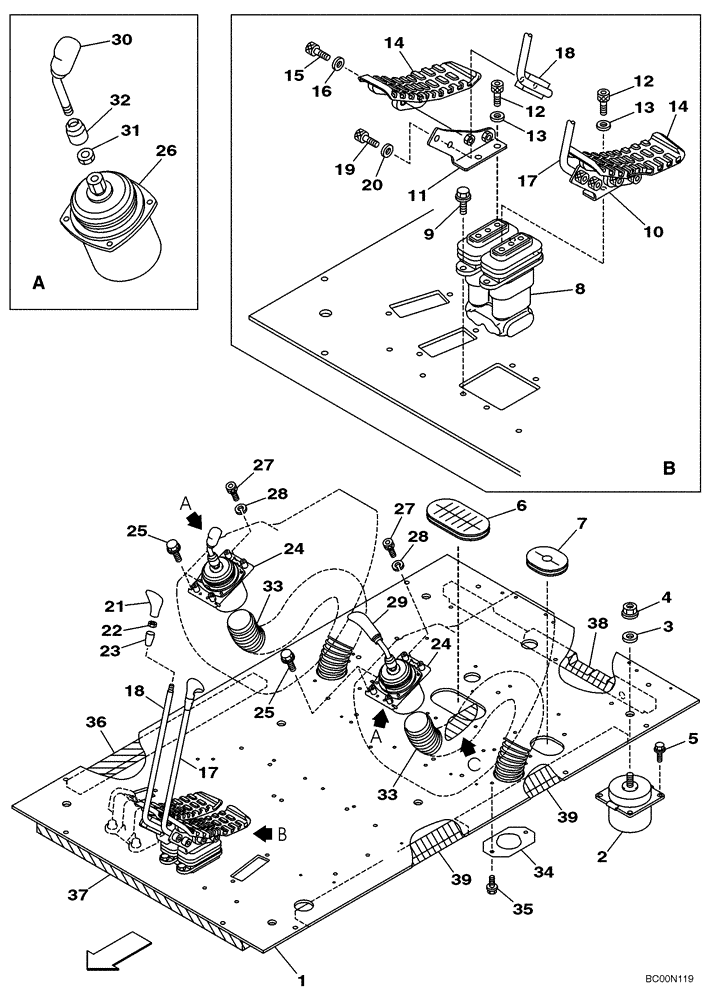

Схема запчастей Case CX460 - (09-10) - CONTROLS - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
13
15
7
21
17
29
23
9
39
26
13
19
6
33
27
28
17
10
25
34
35
37
25
8
27
1
12
30
28
18
38
14
22
24
3
24
31
36
5
4
32
11
33
14
39
16
12
18
20
2

Артикул

Название

Примечание

Количество

1

KHJ1825

CAB FLOOR

1шт.

2

KHJ1471

INSULATOR BLOCK

RUBBER BLOCK

6шт.

3

150714A1

WASHER

6шт.

4

150760A1

NUT

6шт.

5

166052A1

BOLT

24шт.

6

KHJ1375

GROMMET

1шт.

7

KHJ1484

GROMMET

1шт.

8

KHJ19280

CONTROL BLOCK

See Figure 08-83A, Replaces KTJ2034 FIG. 08-83

1шт.

9

166052A1

BOLT

4шт.

10

KHJ1625

BRACKET

1шт.

11

KHJ1626

BRACKET

1шт.

12

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

13

150604A1

WASHER

4шт.

14

KHJ1629

PEDAL

2шт.

15

KHJ1820

BOLT,Hex Skt Hd

4шт.

16

150604A1

WASHER

4шт.

17

KHJ1627

LEVER

Left Hand

1шт.

18

KHJ1628

LEVER

Right Hand

1шт.

19

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

20

150604A1

WASHER

4шт.

21

KHJ1633

KNOB

Misty Blue

2шт.

21

KHJ2896

HANDLE

Granite Black

2шт.

22

150373A1

NUT

M12; 12,9

2шт.

23

KHJ1777

CAP

Misty Blue

2шт.

23

KHJ2897

SPACER

Granite Black

2шт.

24

KHJ1651

BRACKET

2шт.

25

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

26

KTJ2035

CONTROL BLOCK

See Figure 08-84

2шт.

27

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

8шт.

28

892-11006

LOCK WASHER,M6

8шт.

29

KHJ1953

GRIP

Options, Auxiliary Hydraulics, Left Hand; Includes Horn Switch, Not Serviced Separately

1шт.

29

KHJ1556

KNOB

Standard; Left Hand; Misty Blue

1шт.

29

KHJ2894

GRIP

Standard; Left Hand, Granite Black; Includes Horn Switch; Not Serviced Separately

1шт.

30

KHJ1954

GRIP

Options, Auxiliary Hydraulics, Right Hand; Includes Boost Switch, Not Serviced Separately

1шт.

30

KHJ1557

GRIP

Standard, Right Hand with Return to idle button; Misty Blue

1шт.

30

KHJ2895

GRIP

Standard; Right Hand; Granite Black; Includes Boost Switch, Not Serviced Separately

1шт.

31

151154A1

JAM NUT

2шт.

32

151302A1

CAP

2шт.

33

KHJ1644

HOSE PROTECTION

2шт.

34

KHJ1645

BRACKET

2шт.

35

166345A1

BOLT

4шт.

36

KHJ1732

SEAL

1шт.

37

KHJ1733

SEAL

1шт.

38

KHJ1734

SEAL

1шт.

39

KHJ1735

SEAL

2шт.
