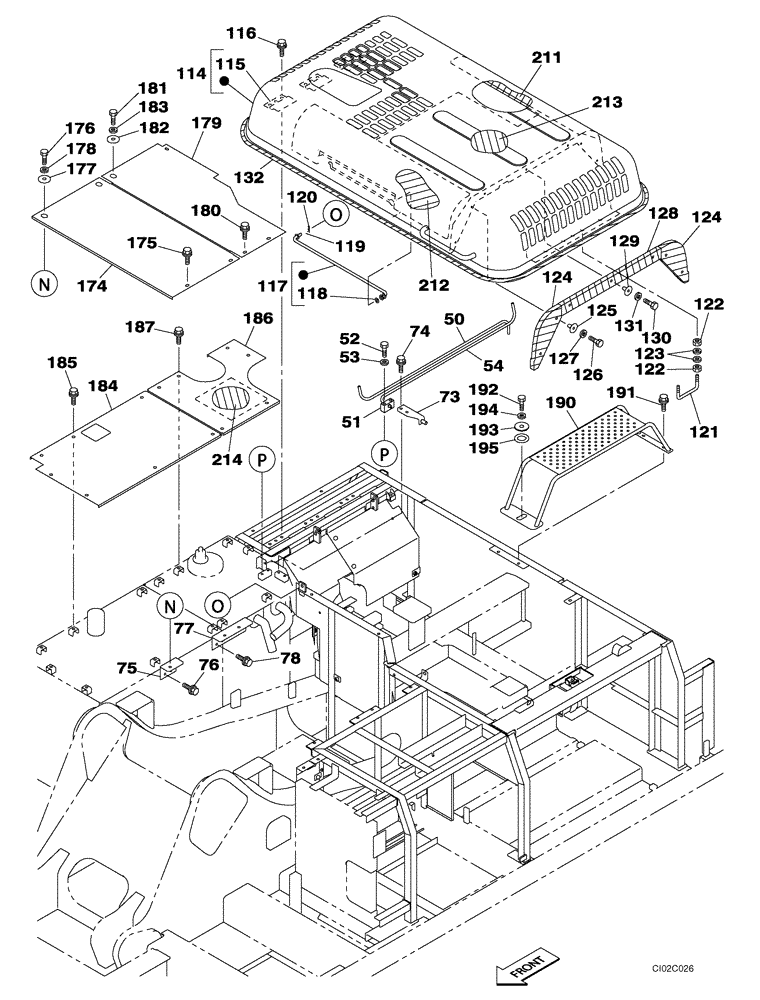

Запчасти Case CX460 (09-08) - HOOD, ENGINE - INSULATION (09) - CHASSIS/ATTACHMENTS

50

KTN1308

SPRING

1шт.

51

KTN1330

SUPPORT

1шт.

52

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

53

150811A1

WASHER

2шт.

54

KTN1307

SPRING

1шт.

73

KSN1271

SUPPORT

1шт.

74

166352A1

BOLT

2шт.

75

KSN1207

SUPPORT

1шт.

76

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

77

KSN1272

SUPPORT

1шт.

78

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

114

KTN1371G1

ENGINE HOOD

Incl. 115

1шт.

115

KTN1287

HINGE

3шт.

116

166352A1

BOLT

9шт.

117

166679A1

STAY

Incl. 118

1шт.

118

166575A1

SHIM

3шт.

119

166575A1

SHIM

1шт.

120

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER Replaces 153181A1

1шт.

121

KTN1274

HOOK

1шт.

122

829-1416

NUT,M16, Cl 10

4шт.

123

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

124

KTN1324

NOISE PROTECTION

2шт.

125

KHH0358

RETAINER

4шт.

126

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

127

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

128

KTN1325

NOISE PROTECTION

1шт.

129

KHH0358

RETAINER

3шт.

130

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

3шт.

131

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

132

KTN1312

PACKING

1шт.

174

KTN1379Y2

COVER

1шт.

175

166352A1

BOLT

2шт.

176

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

177

162409A1

WASHER

2шт.

178

150811A1

WASHER

2шт.

179

KTN1380Y2

COVER

1шт.

180

166352A1

BOLT

3шт.

181

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

182

162409A1

WASHER

1шт.

183

150811A1

WASHER

1шт.

184

KTN1377Y2

COVER

1шт.

185

166352A1

BOLT

5шт.

186

KTN1378Y2

COVER

1шт.

187

166352A1

BOLT

6шт.

190

KSN1274

STEP

1шт.

191

166352A1

BOLT

2шт.

192

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

193

162409A1

WASHER

1шт.

194

150811A1

WASHER

1шт.

195

KHN2061

WASHER

1шт.

211

KBN11360

NOISE PROTECTION

Replaces KTN1332

1шт.

212

KTN1333

NOISE PROTECTION

No Longer Available, Replace With KTN10660, KTN10670, KTN10680, Ref 215 - 217

1шт.

213

KTN1387

NOISE PROTECTION

No Longer Available, Replaces With KTN10640 And KTN10650, REF 218, 219

1шт.

214

KTN1354

FOAM INSULATION

KTN10650

1шт.

215

KTN10660

NOISE PROTECTION

Not Illustrated

1шт.

216

KTN10670

NOISE PROTECTION

Not Illustrated

1шт.

217

KTN10680

NOISE PROTECTION

Not Illustrated

1шт.

218

KTN10640

NOISE PROTECTION

Not Illustrated

1шт.

219

KTN10650

NOISE PROTECTION

Not Illustrated

1шт.
