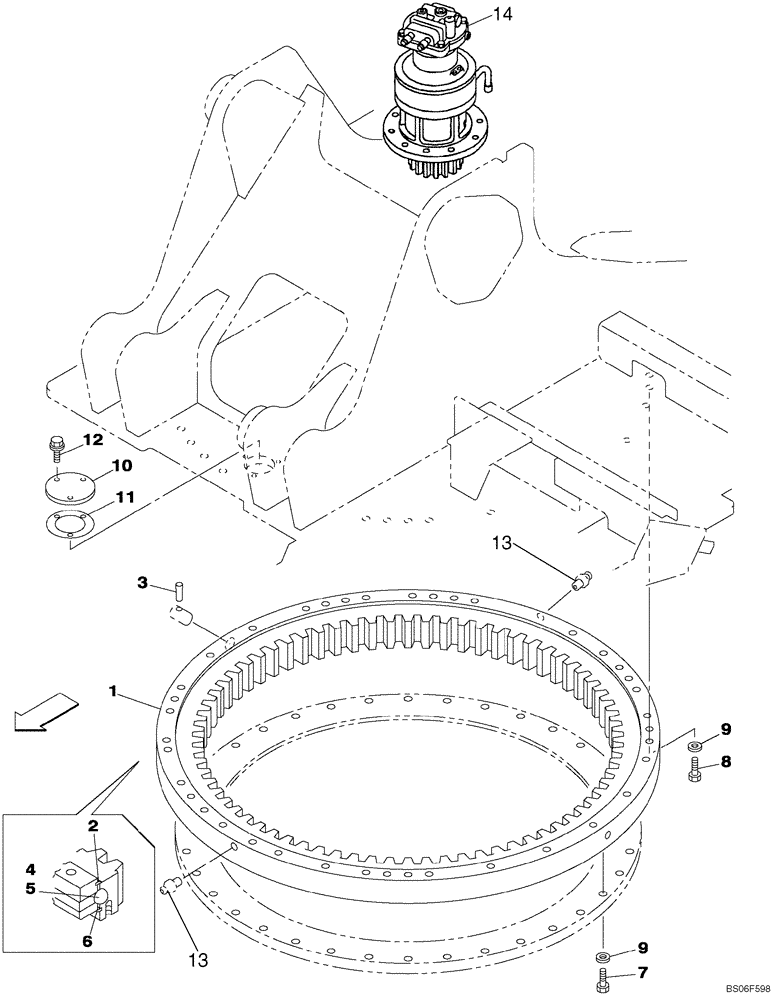

Запчасти Case CX460 (09-01) - TURNTABLE BEARING (09) - CHASSIS/ATTACHMENTS

1

KTB10010

RING GEAR

Incl. 2 - 6; Replaces KTB0847

1шт.

2

KTB0854

SEALING RING

1шт.

3

166628A1

DOWEL

1шт.

4

NSS

NOT SOLD SEPARAT

Ball

72шт.

5

NSS

NOT SOLD SEPARAT

Spacer

72шт.

6

KTB0855

SEALING RING

1шт.

7

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

46шт.

8

828-24170

BOLT,Hex, M24 x 3 x 170mm, Cl 10.9

41шт.

9

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

87шт.

10

158929A1

LID

1шт.

11

158930A1

CORK SEAL

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

13

153630A1

LUBE NIPPLE

2шт.

14

KTC0147

MOTO-REDUCTION GEAR

See Figure 08-71

1шт.

14

KTC0171R

REMAN-HYD MOTOR

CX460 CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KTC0147

1шт.

14

KTC0171C

CORE-MOTOR HYDRAULIC

Return Number

1шт.
