(08-71) - MOUNTING - SWING MOTOR

Запчасти Case CX460 (08-71) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

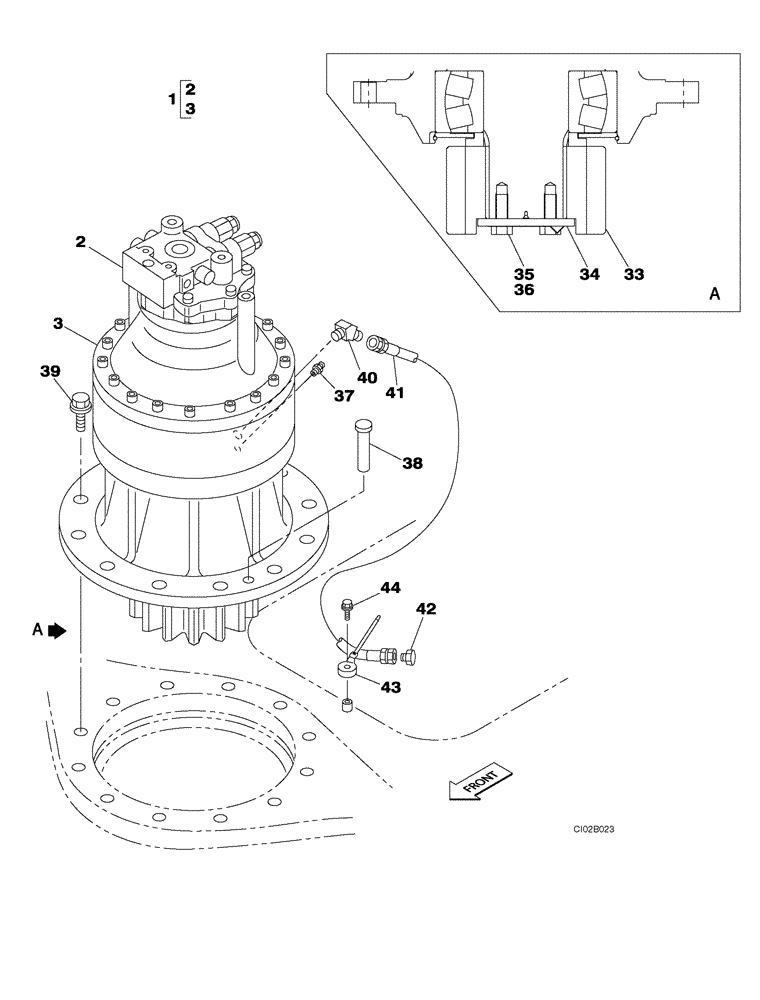

Схема запчастей Case CX460 - (08-71) - MOUNTING - SWING MOTOR (08) - HYDRAULICS
36
3
42
34
40
41
44
39
37
38
3
1
35
2
33
2
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTC0147

MOTO-REDUCTION GEAR

Incl. 2, 3

1шт.

1

KTC10240R

REMAN-REDUCTION UNIT

CX460 CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KTC0147

1шт.

1

KTC10240C

CORE-REDUCTION UNIT

Return Number

1шт.

2

KTC0171

MOTOR, HYDRAULIC

See Figure 08-72

1шт.

2

KTC0171R

REMAN-HYD MOTOR

CX460 CRAWLER EXCAVATOR (NORTH AMERICA), SWING MOTOR

1шт.

2

KTC0171C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

KTC0185

GEAR REDUCTION UNIT

See Figure 08-73; Replaces KTC0148

1шт.

3

KTC10240R

REMAN-REDUCTION UNIT

CX460 CRAWLER EXCAVATOR (NORTH AMERICA), Reman for New PN KTC0185

1шт.

3

KTC10240C

CORE-REDUCTION UNIT

Return Number

1шт.

33

KTC0149

GEAR

1шт.

34

195A160RN

WASHER

1шт.

35

167071A1

RETAINER

1шт.

36

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

2шт.

37

153630A1

LUBE NIPPLE

1шт.

38

150317A1

HEADED PIN,24mm OD x 90mm L

1шт.

39

166477A1

BOLT,Sems, M24 x 90mm

12шт.

40

150915A1

ADAPTER

1шт.

41

KRJ5902

HYDRAULIC HOSE,12.70 mm ID x 360.00 mm

1шт.

42

KHP0578

PLUG

1шт.

43

KHR2584

CLAMP

1шт.

44

KHJ1215

BOLT,Spcl

1шт.
