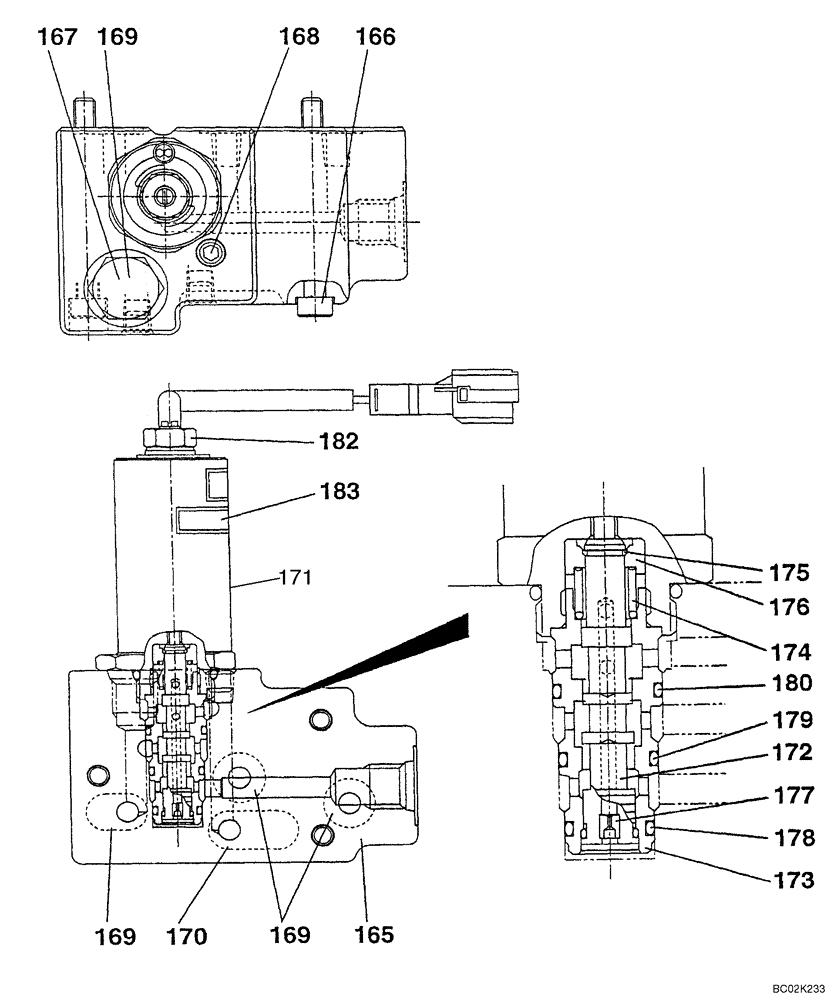

Запчасти Case CX460 (08-70) - PUMP ASSY, HYDRAULIC - SOLENOID VALVE (08) - HYDRAULICS

KTJ2030

HYDRAULIC PUMP

Incl. 165 - 183; Also Includes Parts on Figure(s) 08-65 - 08-69

1шт.

87341989

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341991

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

CPH0400

VALVE

Incl. 165 - 183

1шт.

165

NSS

NOT SOLD SEPARAT

Body

1шт.

166

108R006Y060N

BOLT

3шт.

167

155496A1

PLUG

1шт.

168

LK00003

PLUG

3шт.

169

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

170

UCP0101

O-RING

1шт.

171

NSS

NOT SOLD SEPARAT

Valve

1шт.

172

NSS

NOT SOLD SEPARAT

Spool, Valve

1шт.

173

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

174

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

175

NSS

NOT SOLD SEPARAT

Ring

1шт.

176

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

177

NSS

NOT SOLD SEPARAT

Orifice

1шт.

178

155203A1

O-RING

1шт.

179

155204A1

O-RING

1шт.

180

160652A1

O-RING

1шт.

181

NSS

NOT SOLD SEPARAT

Solenoid; Not Illustrated

1шт.

182

NSS

NOT SOLD SEPARAT

Nut

1шт.

183

NSS

NOT SOLD SEPARAT

Plate, Registration

1шт.
