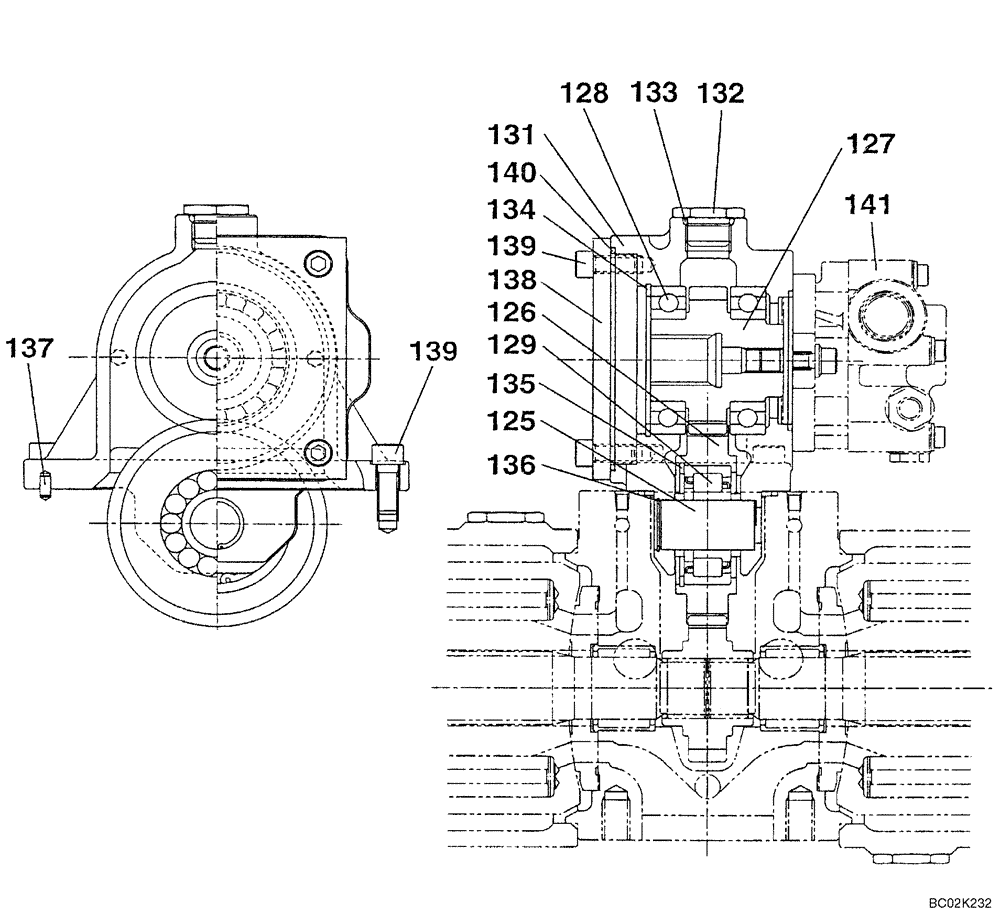

Запчасти Case CX460 (08-69) - PUMP ASSY, HYDRAULIC - GEAR PUMP DRIVE (08) - HYDRAULICS

KTJ2030

HYDRAULIC PUMP

Incl. 124 - 141; Also Incl. Parts on Figure(s) 08-65 - 08-68, 08-70

1шт.

87341989

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341991

CORE-HYDRAULIC PUMP

Return Number, N.A. Only

1шт.

LC00232

GEAR

Incl. 124 - 140

1шт.

124

LC00233

GEAR

Pin; Not Illustrated

1шт.

125

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

126

NSS

NOT SOLD SEPARAT

Gear

1шт.

127

NSS

NOT SOLD SEPARAT

Gear

1шт.

128

NSS

NOT SOLD SEPARAT

Bearing, Ball

2шт.

129

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

130

NSS

NOT SOLD SEPARAT

Spacer; Not Illustrated

2шт.

131

NSS

NOT SOLD SEPARAT

Housing

1шт.

132

155471A1

PLUG

1шт.

133

154503A1

O-RING

1шт.

134

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

135

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

136

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

137

NSS

NOT SOLD SEPARAT

Pin

2шт.

138

NSS

NOT SOLD SEPARAT

Cover

1шт.

139

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

8шт.

140

154776A1

O-RING

1шт.

141

LJ01120

HYDRAULIC PUMP

See Figure 08-66

1шт.
