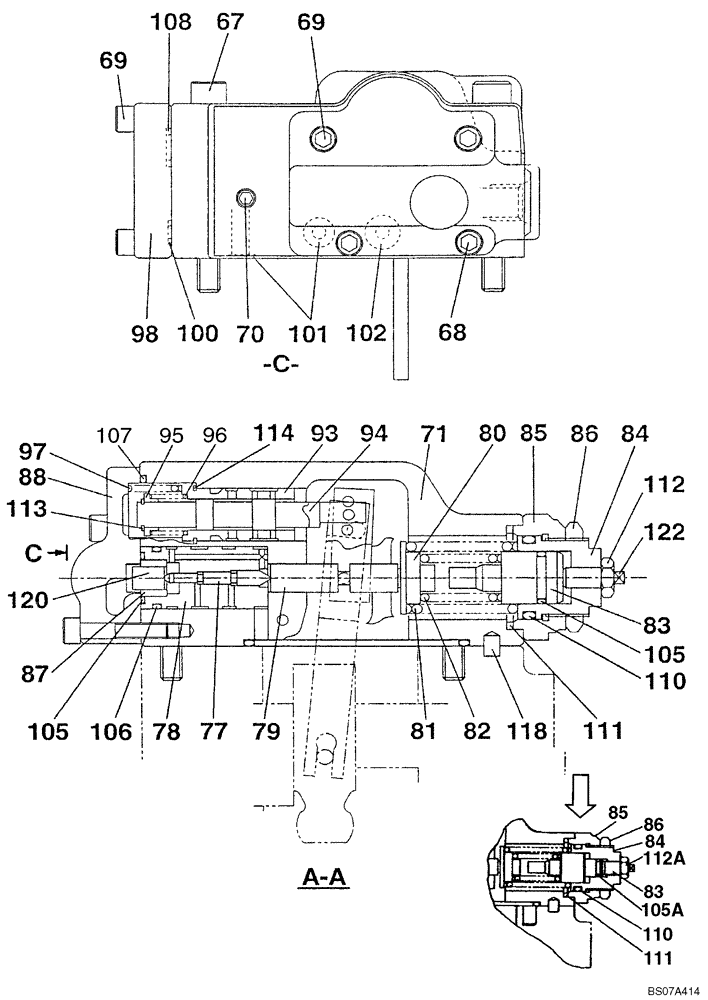

Запчасти Case CX460 (08-67) - PUMP ASSY, HYDRAULIC - REGULATOR (08) - HYDRAULICS

KTJ2030

HYDRAULIC PUMP

Incl. 67 - 122; Also Includes Parts on Figure 08-65, 08-66, 08-68 - 08-70

1шт.

87341989

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341991

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

LL00094

VOLTAGE REGULATOR

Incl. 67 - 122; Also Includes Parts on Figure 08-68

1шт.

67

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

2шт.

68

861-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

2шт.

69

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

10шт.

70

LK00003

PLUG

5шт.

71

NSS

NOT SOLD SEPARAT

Housing

1шт.

77

NSS

NOT SOLD SEPARAT

Piston

1шт.

78

NSS

NOT SOLD SEPARAT

Piston

1шт.

79

NSS

NOT SOLD SEPARAT

Rod

1шт.

80

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

81

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

82

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

83

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

84

NSS

NOT SOLD SEPARAT

Screw

1шт.

85

NSS

NOT SOLD SEPARAT

Cover

1шт.

86

NSS

NOT SOLD SEPARAT

Nut

1шт.

87

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

88

NSS

NOT SOLD SEPARAT

Cover

1шт.

93

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

94

NSS

NOT SOLD SEPARAT

O-ring

1шт.

95

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

96

NSS

NOT SOLD SEPARAT

Spring

1шт.

97

NSS

NOT SOLD SEPARAT

Spring

1шт.

98

NSS

NOT SOLD SEPARAT

Cover

1шт.

100

154447A1

O-RING

3шт.

101

154455A1

O-RING

9шт.

102

154463A1

O-RING

1шт.

105

154485A1

O-RING

Replaces 154483A1

1-2шт.

105a

LE013540

O-RING

1шт.

106

154491A1

O-RING

1шт.

107

154509A1

O-RING

1шт.

108

155063A1

O-RING

1шт.

110

154515A1

O-RING

1шт.

111

154549A1

O-RING

1шт.

112

LA00065

JAM NUT

1-2шт.

112a

LA010640

JAM NUT

1шт.

113

800-1110

SNAP RING,M10, Ext

1шт.

114

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

118

NSS

NOT SOLD SEPARAT

Pin

1шт.

120

NSS

NOT SOLD SEPARAT

Pin

1шт.

122

NSS

NOT SOLD SEPARAT

Bolt; No Longer Used

1шт.
