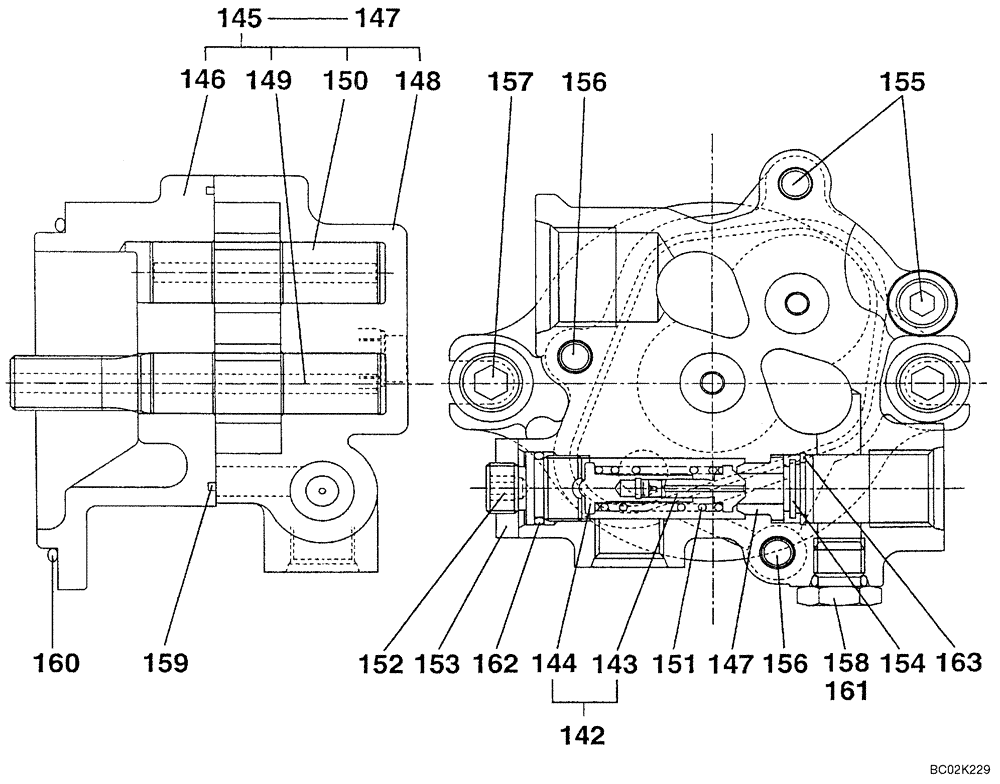

Запчасти Case CX460 (08-66) - PUMP ASSY, HYDRAULIC - DRIVE (08) - HYDRAULICS

KTJ2030

HYDRAULIC PUMP

Incl. 142 - 163; Also Incl. Parts on Figure(s) 08-65, 08-67 - 08-70

1шт.

87341989

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341991

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

LJ01120

HYDRAULIC PUMP

Incl. 142 - 163

1шт.

142

LNP0221

VALVE POPPET

Incl. 143, 144

1шт.

143

TIP0000673

POPPET

1шт.

144

TIP0000675

SEAT, VALVE

1шт.

145

LC00234

GEAR

Incl. 146 - 150

1шт.

146

NSS

NOT SOLD SEPARAT

Housing

1шт.

147

NSS

NOT SOLD SEPARAT

Seat

1шт.

148

NSS

NOT SOLD SEPARAT

Housing

1шт.

149

NSS

NOT SOLD SEPARAT

Gear

1шт.

150

NSS

NOT SOLD SEPARAT

Gear

2шт.

151

160593A1

SPRING

1шт.

152

160568A1

ADJUSTMENT SCREW

1шт.

153

163662A1

LOCK NUT

1шт.

154

163663A1

FILTER

1шт.

155

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

2шт.

156

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

2шт.

157

LA00692

BOLT,Hex Skt Hd

2шт.

158

155496A1

PLUG

1шт.

159

163667A1

SEALING RING

1шт.

160

154689A1

O-RING

1шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

162

154483A1

O-RING

1шт.

163

163668A1

RING, LOCKING

RING, LOCK

1шт.
