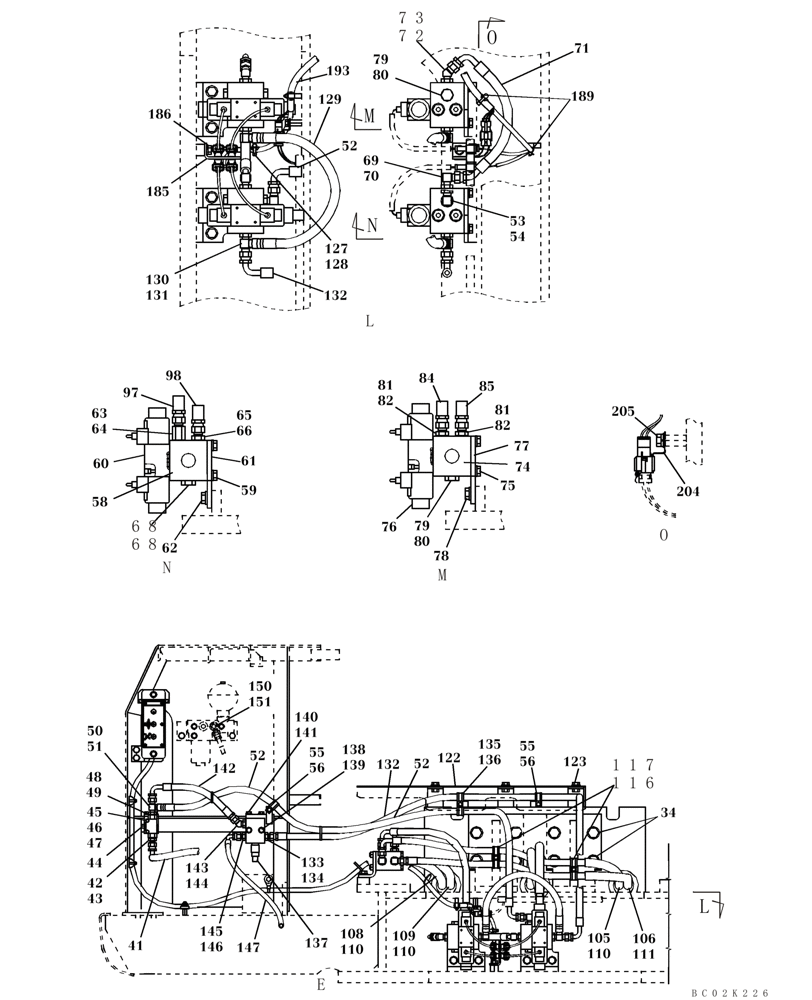

Запчасти Case CX460 (08-63) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

34

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

2шт.

41

KTJ2334

HYDRAULIC HOSE,9.52 mm ID x 650.00 mm

1шт.

42

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 43

1шт.

43

154475A1

O-RING

1шт.

44

KHJ17390

MANIFOLD VALVE

Replaces KHJ1810

1шт.

45

102R005Y045R

BOLT

2шт.

46

892-11005

LOCK WASHER,M5

2шт.

47

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

48

KTJ2300

BRACKET

1шт.

49

167182A1

BOLT,Sems, M8 x 25mm

2шт.

50

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 51

1шт.

51

154475A1

O-RING

1шт.

52

KTJ2301

HYDRAULIC HOSE,9.52 mm ID x 1600.00 mm

1шт.

53

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 54

1шт.

54

154475A1

O-RING

1шт.

55

KHJ1076

CLAMP

2шт.

56

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

58

KUJ0298

MANIFOLD VALVE

1шт.

59

166052A1

BOLT

4шт.

60

KUJ0288

SOLENOID VALVE

1шт.

61

KTJ2302

BRACKET

1шт.

62

166352A1

BOLT

2шт.

63

159226A1

ADAPTER

Incl. 64

1шт.

64

154475A1

O-RING

1шт.

65

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 66

1шт.

66

154475A1

O-RING

1шт.

67

153105A1

PLUG

Incl. 68

1шт.

68

154475A1

O-RING

1шт.

69

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 70

1шт.

70

154475A1

O-RING

1шт.

71

KTJ2305

HYDRAULIC HOSE,9.52 mm ID x 370.00 mm

1шт.

72

157584A1

ELBOW

Incl. 73

1шт.

73

154475A1

O-RING

1шт.

74

KUJ0298

MANIFOLD VALVE

1шт.

75

166052A1

BOLT

4шт.

76

KUJ0288

SOLENOID VALVE

1шт.

77

KTJ2302

BRACKET

1шт.

78

166352A1

BOLT

2шт.

79

153105A1

PLUG

Incl. 80

2шт.

80

154475A1

O-RING

1шт.

81

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 82

2шт.

82

154475A1

O-RING

1шт.

84

KTJ2307

HYDRAULIC HOSE,9.52 mm ID x 520.00 mm

1шт.

85

KTJ2308

HYDRAULIC HOSE,9.52 mm ID x 470.00 mm

1шт.

97

MMS4163

HOSE ASSY.,9.50 mm ID x 880.00 mm

1шт.

98

MMS4164

HOSE ASSY.,9.50 mm ID

1шт.

105

KAJ3813

HYDRAULIC HOSE,9.50 mm ID x 1900.00 mm

1шт.

106

KTJ2311

HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm

1шт.

108

KTJ2304

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

109

MMS4163

HOSE ASSY.,9.50 mm ID x 880.00 mm

1шт.

110

158063A1

PLASTIC-RUBBER TUBE

3шт.

111

158061A1

PLASTIC-RUBBER TUBE

1шт.

116

KHJ1076

CLAMP

4шт.

117

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

122

KTJ11250

COVER

Replaces KTJ2323

1шт.

123

166352A1

BOLT

3шт.

127

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 128

1шт.

128

154475A1

O-RING

1шт.

129

KRJ4344

HYDRAULIC HOSE,9.50 mm ID x 530.00 mm

1шт.

130

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 131

1шт.

131

154475A1

O-RING

1шт.

132

KHJ2428

HOSE ASSY.,9.50 mm ID x 1550.00 mm

1шт.

133

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 134

1шт.

134

154475A1

O-RING

1шт.

135

KHJ1076

CLAMP

2шт.

136

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

137

KTJ2293

VALVE PRESSURE RELIE

1шт.

138

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

139

153081A1

WASHER

2шт.

140

KTJ2312

BRACKET

1шт.

141

167182A1

BOLT,Sems, M8 x 25mm

2шт.

142

KTJ2313

HYDRAULIC HOSE,9.52 mm ID x 310.00 mm

1шт.

143

157584A1

ELBOW

Incl. 144

1шт.

144

154475A1

O-RING

1шт.

145

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 146

1шт.

146

154475A1

O-RING

1шт.

147

KHJ2429

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

1шт.

150

159497A1

TEE

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

185

KUR0091

BRACKET

1шт.

186

166351A1

BOLT,Sems, M10 x 20mm

1шт.

189

KHR2787

CLAMP

2шт.

193

KTR0561

WIRE HARNESS

1шт.

204

158962A1

CLIP

1шт.

205

167518A1

BOLT

1шт.
