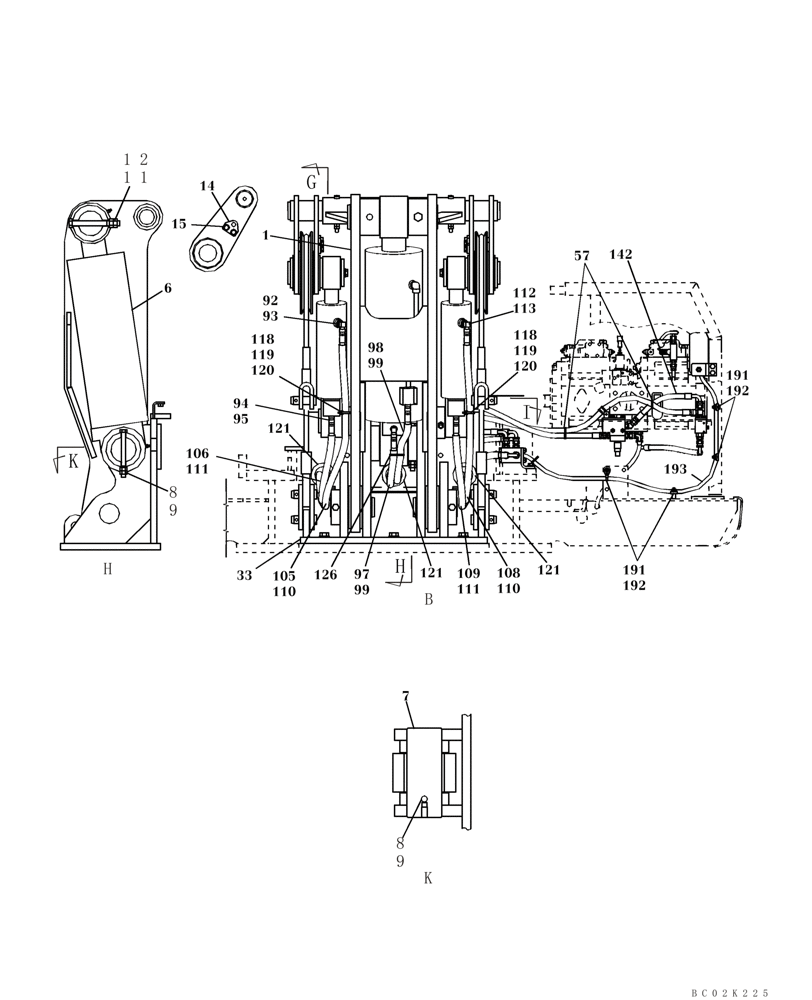

Запчасти Case CX460 (08-62) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

1

KTB0941

ARM

1шт.

6

KTB0936

HYDRAULIC CYLINDER

See Figure 08-99

1шт.

7

KTB0950

PIN

1шт.

8

514-1034

BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9

1шт.

9

829-13416

NUT,M16 x 1.5, Cl 10

2шт.

11

514-1226

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

1шт.

12

829-11420

NUT,M20 x 1.5, Cl 10

2шт.

14

KUB0159

PLATE

2шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

33

KTB0942

BRACKET

1шт.

57

150496A1

MOUNTING CLIP

1шт.

92

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 93

1шт.

93

154475A1

O-RING

1шт.

94

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 95

1шт.

95

154475A1

O-RING

1шт.

97

MMS4163

HOSE ASSY.,9.50 mm ID x 880.00 mm

1шт.

98

MMS4164

HOSE ASSY.,9.50 mm ID

1шт.

99

158061A1

PLASTIC-RUBBER TUBE

2шт.

105

KAJ3813

HYDRAULIC HOSE,9.50 mm ID x 1900.00 mm

1шт.

106

KTJ2311

HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm

1шт.

108

KTJ2304

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

109

MMS4163

HOSE ASSY.,9.50 mm ID x 880.00 mm

1шт.

110

158063A1

PLASTIC-RUBBER TUBE

2шт.

111

158061A1

PLASTIC-RUBBER TUBE

2шт.

112

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

118

150860A1

COLLAR

2шт.

119

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

120

150496A1

MOUNTING CLIP

2шт.

121

164689A1

GROMMET

3шт.

126

150496A1

MOUNTING CLIP

1шт.

142

KTJ2313

HYDRAULIC HOSE,9.52 mm ID x 310.00 mm

1шт.

191

KHR2584

CLAMP

4шт.

192

KHJ1215

BOLT,Spcl

4шт.

193

KTR0561

WIRE HARNESS

1шт.
