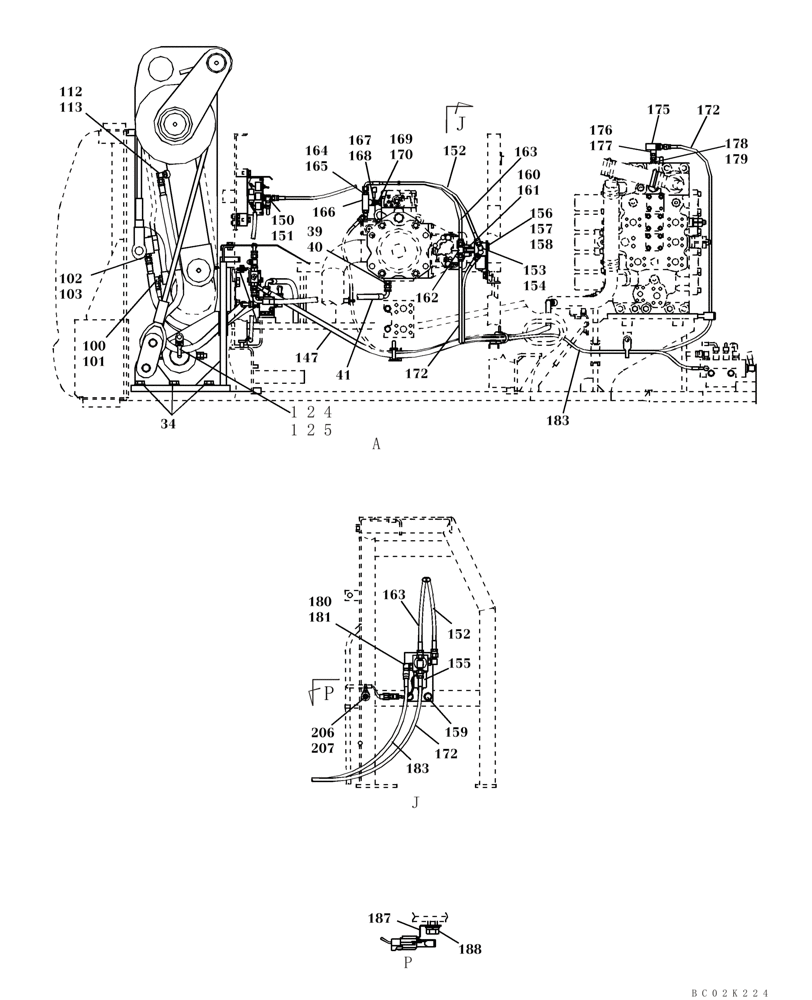

Запчасти Case CX460 (08-61) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

34

166353A1

BOLT,Flng, M20 x 65mm, Cl 10.9

3шт.

39

152747A1

ADAPTER

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

KTJ2334

HYDRAULIC HOSE,9.52 mm ID x 650.00 mm

1шт.

100

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

101

154475A1

O-RING

1шт.

102

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 103

1шт.

103

154475A1

O-RING

1шт.

112

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

124

KHR2581

CLAMP

1шт.

125

KHJ1215

BOLT,Spcl

1шт.

147

KHJ2429

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

1шт.

150

159497A1

TEE

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

152514A1

HOSE,63mm ID x 1000mm L

1шт.

153

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 154

1шт.

154

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

162538A1

VALVE

Solenoid; See Figure 08-82

1шт.

156

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

157

892-11006

LOCK WASHER,M6

2шт.

158

KTJ2314

BRACKET

1шт.

159

166352A1

BOLT

2шт.

160

162525A1

STUD

Incl. 161

1шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

162

167321A1

TEE

1шт.

163

159013A1

HOSE ASSY.

1шт.

164

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 165

1шт.

165

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

166

KHJ17090

VALVE PRESSURE RELIE

Shuttle; Replaces 158186A1 Incl. 167

1шт.

167

162654A1

HYD CONNECTOR

1шт.

168

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

169

150933A1

ELBOW

Incl. 170

1шт.

170

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

172

152275A1

HOSE,63mm ID x 2900mm L

1шт.

175

158186A1

VALVE PRESSURE RELIE

Shuttle

1шт.

176

162654A1

HYD CONNECTOR

Incl. 177

1шт.

177

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

178

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 179

1шт.

179

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

180

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 181

1шт.

181

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

183

161485A1

HOSE ASSY.

1шт.

187

158962A1

CLIP

1шт.

188

167518A1

BOLT

1шт.

206

KHR2584

CLAMP

1шт.

207

KHJ1215

BOLT,Spcl

1шт.
