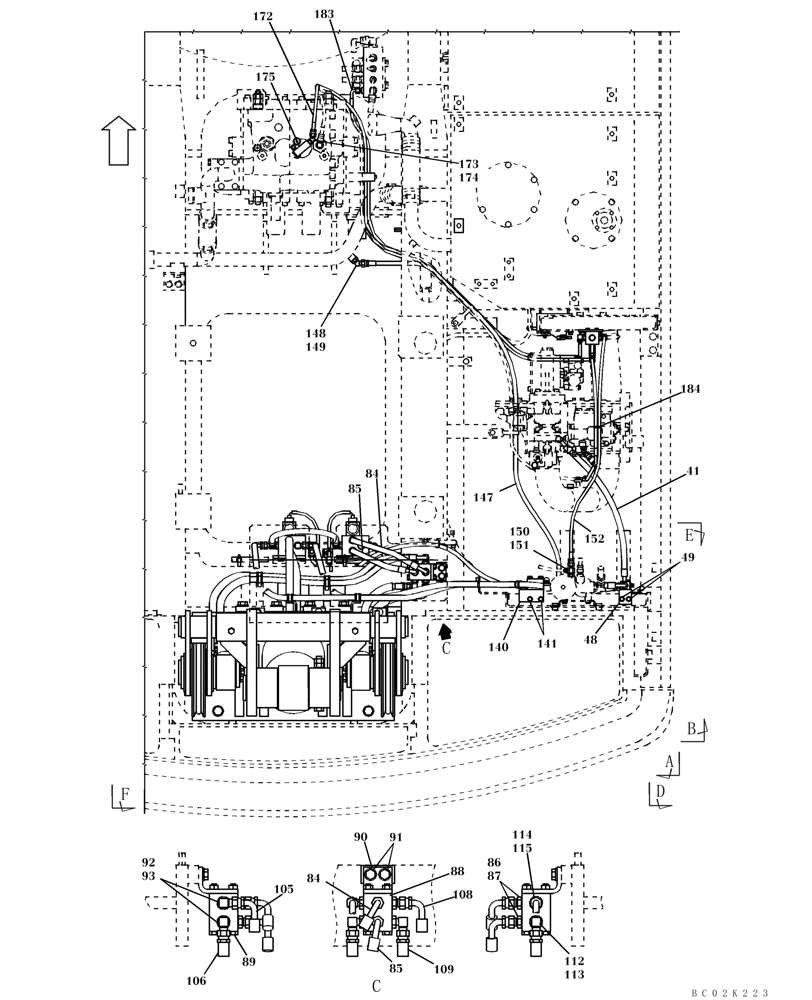

Запчасти Case CX460 (08-60) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

41

KTJ2334

HYDRAULIC HOSE,9.52 mm ID x 650.00 mm

1шт.

48

KTJ2300

BRACKET

1шт.

49

167182A1

BOLT,Sems, M8 x 25mm

2шт.

84

KTJ2307

HYDRAULIC HOSE,9.52 mm ID x 520.00 mm

1шт.

85

KTJ2308

HYDRAULIC HOSE,9.52 mm ID x 470.00 mm

1шт.

86

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 87

2шт.

87

154475A1

O-RING

1шт.

88

KUJ0304

MANIFOLD

1шт.

89

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

90

KTJ2309

BRACKET

1шт.

91

166352A1

BOLT

2шт.

92

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 93

2шт.

93

154475A1

O-RING

1шт.

105

KAJ3813

HYDRAULIC HOSE,9.50 mm ID x 1900.00 mm

1шт.

106

KTJ2311

HYDRAULIC HOSE,9.52 mm ID x 1500.00 mm

1шт.

108

KTJ2304

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

109

MMS4163

HOSE ASSY.,9.50 mm ID x 880.00 mm

1шт.

112

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

114

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 115

1шт.

115

154475A1

O-RING

1шт.

140

KTJ2312

BRACKET

1шт.

141

167182A1

BOLT,Sems, M8 x 25mm

2шт.

147

KHJ2429

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

1шт.

148

157584A1

ELBOW

Incl. 149

1шт.

149

154475A1

O-RING

1шт.

150

159497A1

TEE

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

152514A1

HOSE,63mm ID x 1000mm L

1шт.

172

152275A1

HOSE,63mm ID x 2900mm L

1шт.

173

150933A1

ELBOW

Incl. 174

1шт.

174

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

175

KHJ17090

VALVE PRESSURE RELIE

; Replaces 158186A1

1шт.

183

161485A1

HOSE ASSY.

1шт.

184

150496A1

MOUNTING CLIP

1шт.
