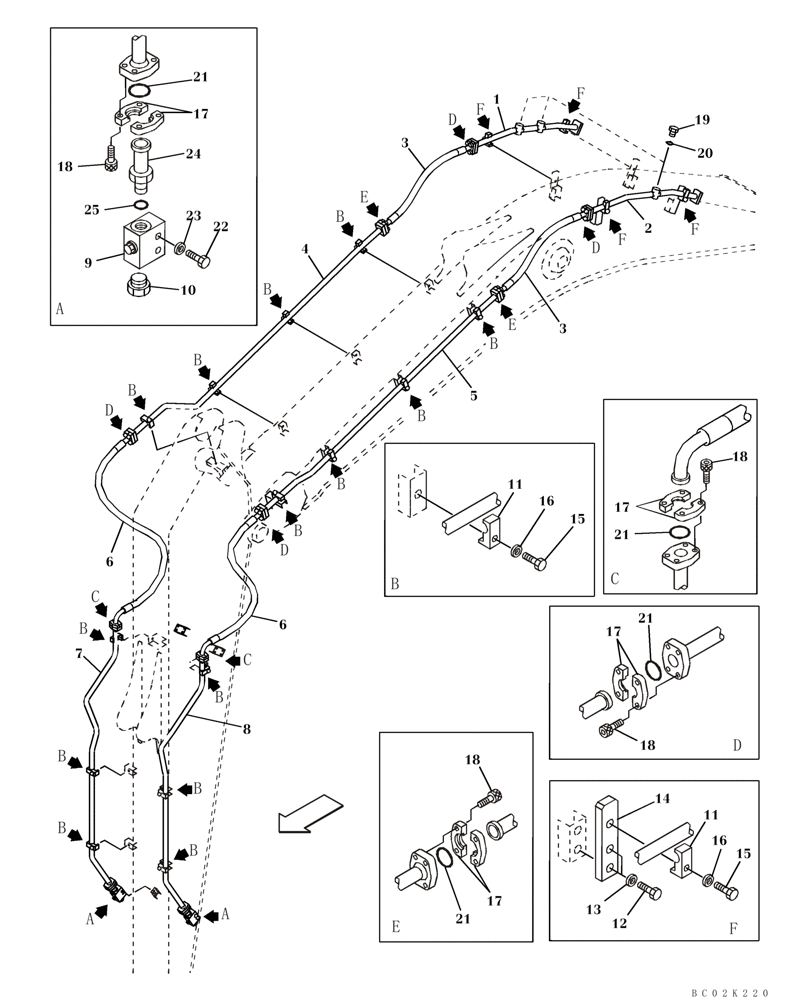

Запчасти Case CX460 (08-58) - HYDRAULICS, AUXILIARY ATTACHMENT - 4,0 M (13 FT 1 IN) ARM (08) - HYDRAULICS

1

KTV1217

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KTV1216

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

1300 mm (51-1/4 in)

2шт.

4

KTV1213

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KTV1214

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KBV1712

HYDRAULIC HOSE,31.80 mm ID x 2400.00 mm

2шт.

7

KSV1514

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

8

KTV1707

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

Replaces KSV1515

1шт.

9

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

10

162335A1

PLUG

2шт.

11

KTV1209

CLAMP

16шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

8шт.

14

KTV1210

SUPPORT

4шт.

15

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

16шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

17

150124A1

FLANGE

20шт.

18

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

40шт.

19

152924A1

PLUG

Incl. 20

3шт.

20

154503A1

O-RING

1шт.

21

164450A1

O-RING

10шт.

22

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

23

150811A1

WASHER

4шт.

24

KHV0451

FITTING

Incl. 25

2шт.

25

154559A1

O-RING

1шт.
