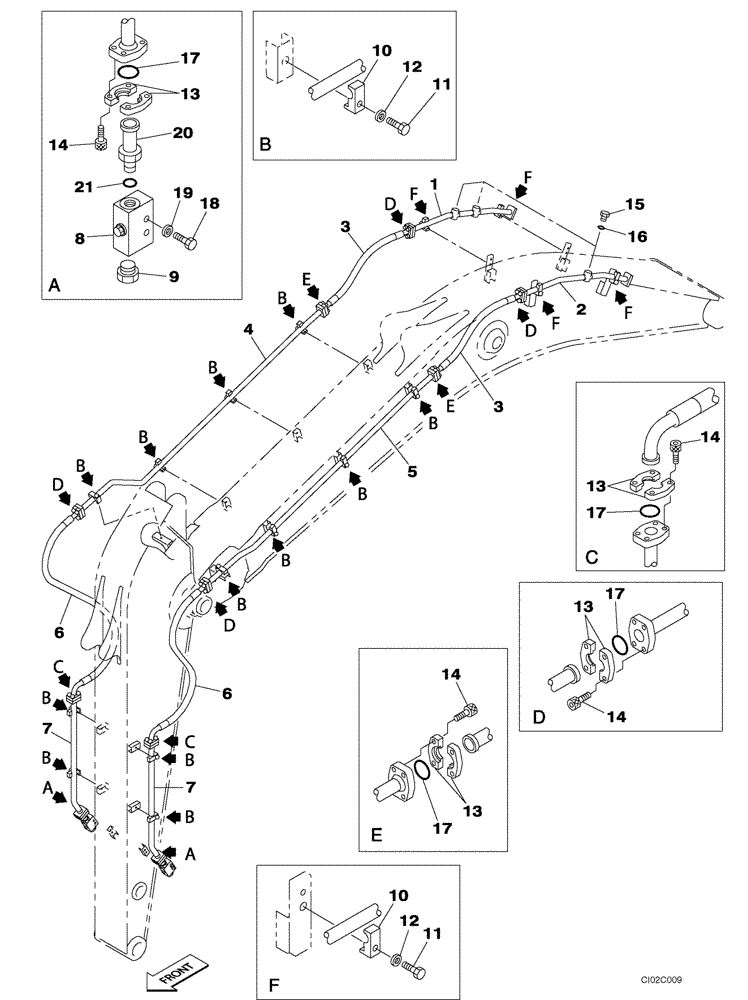

Запчасти Case CX460 (08-57) - HYDRAULICS, AUXILIARY ATTACHMENT - 3,38 M (11 FT 1 IN) ARM (08) - HYDRAULICS

1

KTV1217

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KTV1216

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

1300 mm (51-1/4 in)

2шт.

4

KTV1213

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KTV1214

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KTV1211

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2шт.

7

KSV1436

HYD TUBE,34.7 mm ID x 42.7 mm OD

2шт.

8

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

9

162335A1

PLUG

2шт.

10

KTV1209

CLAMP

16шт.

11

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

16шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

16шт.

13

150124A1

FLANGE

Split

20шт.

14

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

40шт.

15

152924A1

PLUG

Incl. 16

3шт.

16

154503A1

O-RING

1шт.

17

164450A1

O-RING

10шт.

18

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

19

150811A1

WASHER

4шт.

20

KHV0451

FITTING

Incl. 21

2шт.

21

154559A1

O-RING

1шт.
