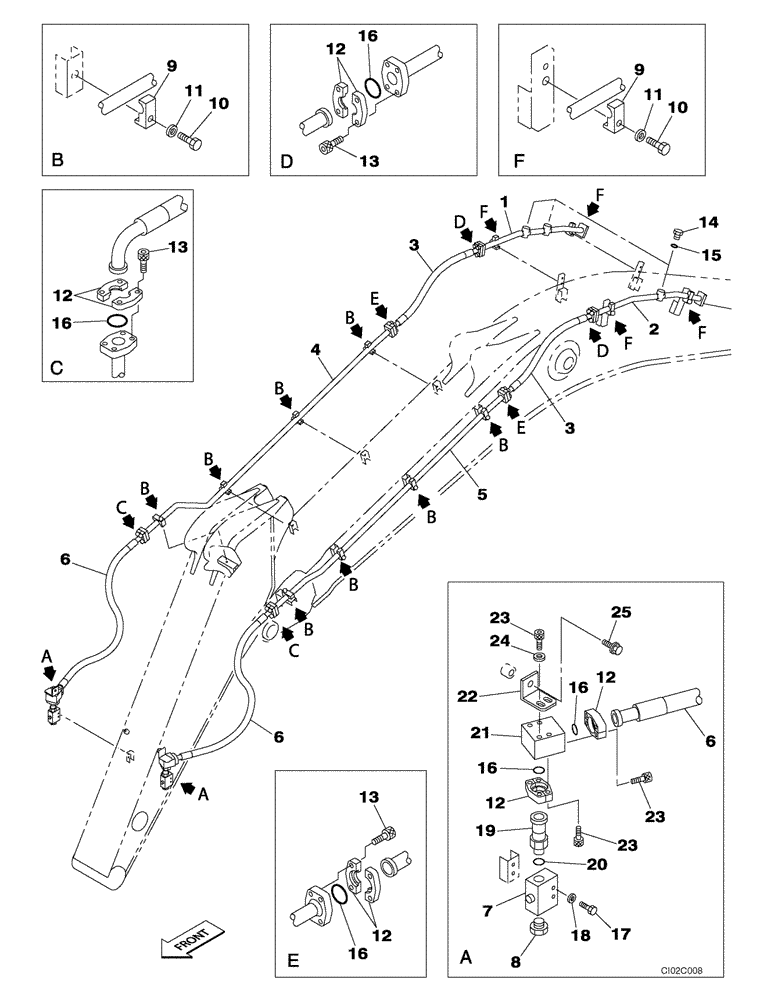

Запчасти Case CX460 (08-56) - HYDRAULICS, AUXILIARY ATTACHMENT - 2,53 M (8 FT 4 IN) ARM (08) - HYDRAULICS

1

KTV1217

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

2

KTV1216

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

3

162610A1

HOSE ASSY.

1300 mm (51-1/4 in)

2шт.

4

KTV1213

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

5

KTV1214

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

6

KTV1340

HYDRAULIC HOSE,31.80 mm ID x 2350.00 mm

2шт.

7

KHV10700

VALVE SECTION

Stop; Replaces KHV0389

2шт.

8

162335A1

PLUG

2шт.

9

KTV1209

CLAMP

12шт.

10

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

12шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

12шт.

12

150124A1

FLANGE

20шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

14

152924A1

PLUG

Incl. 15

3шт.

15

154503A1

O-RING

1шт.

16

164450A1

O-RING

10шт.

17

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

18

150811A1

WASHER

4шт.

19

KHV0451

FITTING

Incl. 20

2шт.

20

154559A1

O-RING

1шт.

21

KRV3226

MANIFOLD

2шт.

22

KRV3227

SUPPORT

2шт.

23

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

20шт.

24

150418A1

WASHER

4шт.

25

166373A1

BOLT,Sems, M16 x 40mm

2шт.
