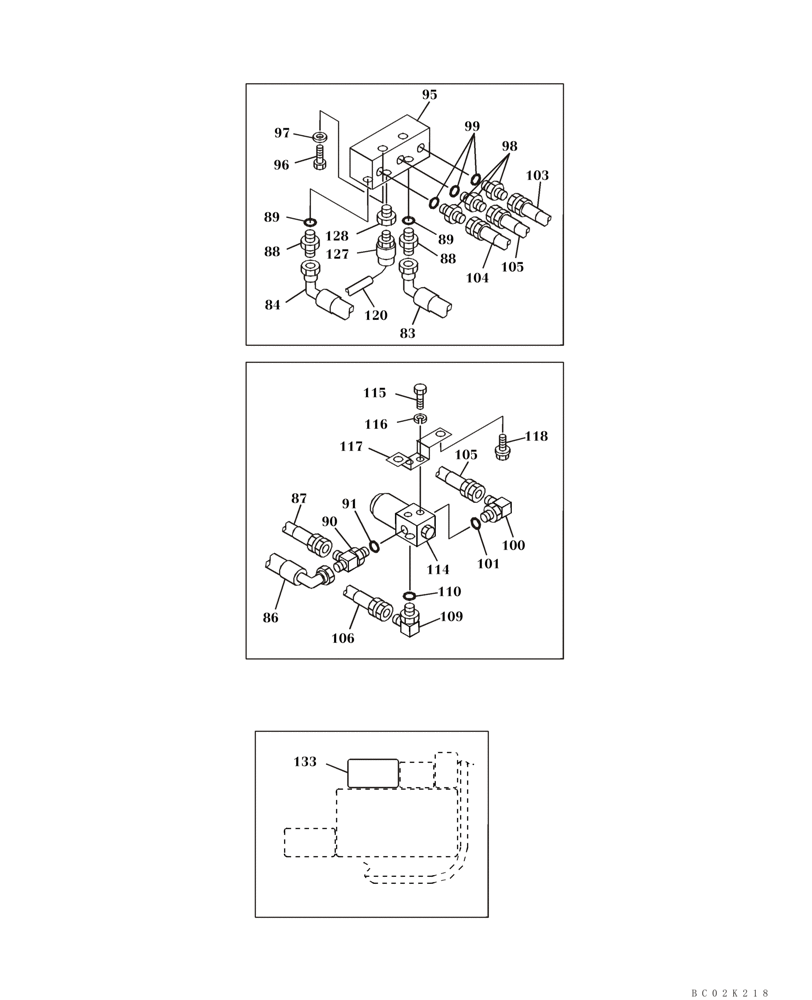

Запчасти Case CX460 (08-54) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

83

KRJ4748

PLASTIC-RUBBER TUBE

See Figure 08-55

1шт.

84

KAJ3243

HYDRAULIC HOSE

See Figure 08-55

1шт.

86

161494A1

HOSE ASSY.

See Figure 08-55

1шт.

87

159235A1

HYDRAULIC HOSE

See Figure 08-53, 850 mm (KRJ3572)

1шт.

88

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 89

2шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

159497A1

TEE

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

KHJ17100

VALVE PRESSURE RELIE

Shuttle; See Figure 08-53; Replaces KHJ1655

1шт.

96

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

97

153081A1

WASHER

2шт.

98

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 99

3шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

161293A1

HOSE

See Figure 08-53

1шт.

104

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-53

1шт.

105

161272A1

HOSE

1шт.

106

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-53

1шт.

109

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

162538A1

VALVE

See Figure(s) 08-53, 08-82

1шт.

115

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

116

892-11006

LOCK WASHER,M6

2шт.

117

KRJ5751

BRACKET

1шт.

118

166346A1

BOLT,Sems, M10

2шт.

120

KHR3351

HARNESS

1шт.

127

KHR10800

PRESSURE SWITCH

Replaces 159899A1

1шт.

128

KHJ11460

ADAPTER

Replaces 152191A1

1шт.

133

KHP1755

DECAL

1шт.

140

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
