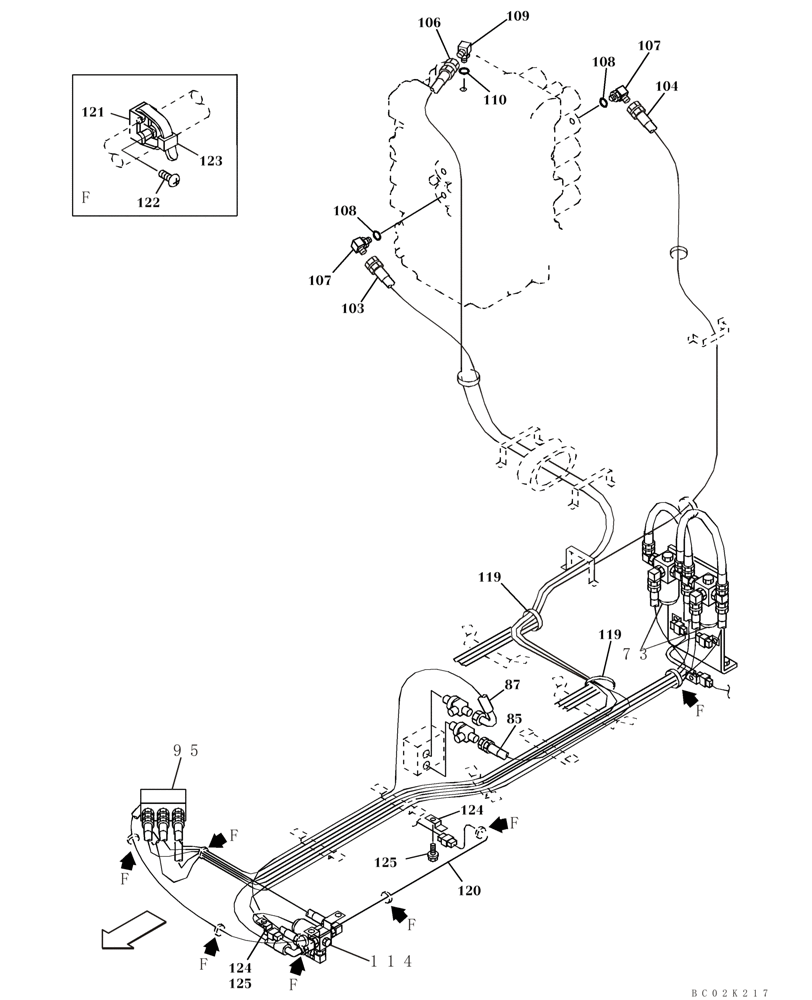

Запчасти Case CX460 (08-53) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

73

162538A1

VALVE

Solenoid; See Figure 08-82

2шт.

85

151888A1

HOSE,63.00 mm ID x 1350.00 mm

See Figure 08-55

1шт.

87

159235A1

HYDRAULIC HOSE

See Figure 08-54, 850 mm (KRJ3572)

1шт.

95

KHJ17100

VALVE PRESSURE RELIE

See Figure 08-54; Replaces KHJ1655

1шт.

103

161293A1

HOSE

See Figure 08-54

1шт.

104

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-54

1шт.

106

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

107

156554A1

ELBOW

Incl. 108

2шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

162538A1

VALVE

Solenoid; See Figure 08-82

1шт.

119

150071A1

MOUNTING CLIP

1шт.

120

KHR3351

HARNESS

1шт.

121

150860A1

COLLAR

7шт.

122

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

123

150496A1

MOUNTING CLIP

7шт.

124

165405A1

CLIP

2шт.

125

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
