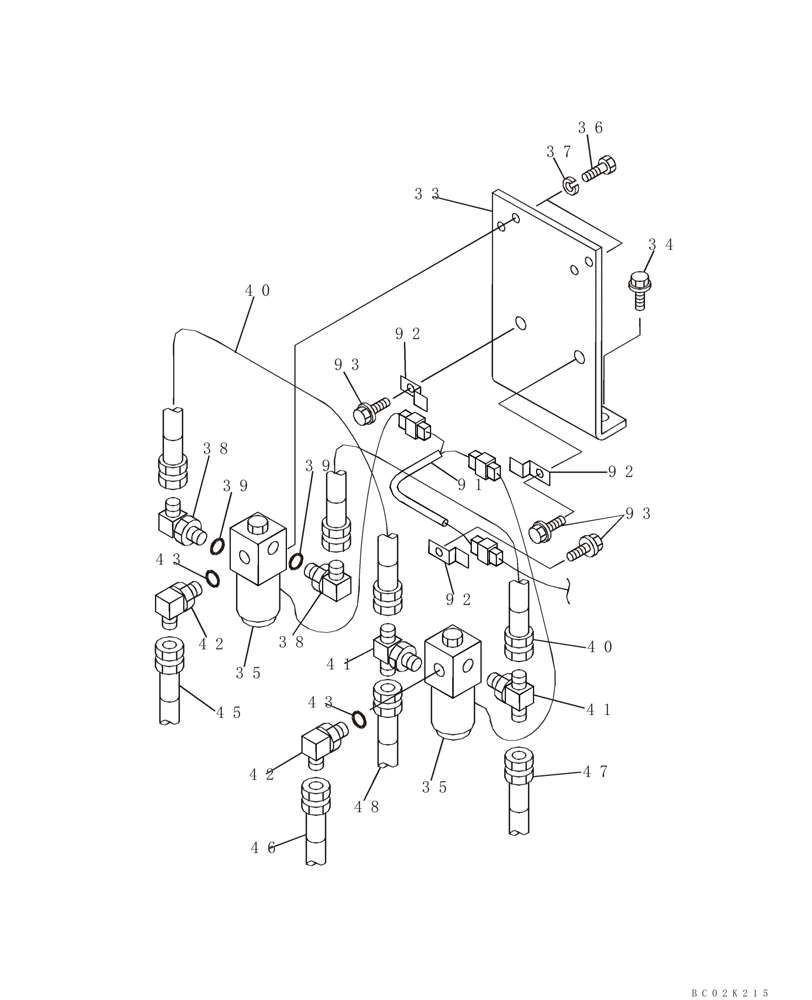

Запчасти Case CX460 (08-51) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

33

KSJ2835

BRACKET

1шт.

34

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

35

162538A1

VALVE

Solenoid; See Figure(s) 08-49, 08-82

2шт.

36

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

37

892-11006

LOCK WASHER,M6

4шт.

38

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 39

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

168780A1

HYDRAULIC HOSE,6.30 mm ID x 350.00 mm

2шт.

41

167321A1

TEE

2шт.

42

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 43

2шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KRJ4748

PLASTIC-RUBBER TUBE

See Figure 08-50

1шт.

46

KAJ3243

HYDRAULIC HOSE

See Figure 08-50

1шт.

47

151888A1

HOSE,63.00 mm ID x 1350.00 mm

See Figure 08-49

1шт.

48

161494A1

HOSE ASSY.

See Figure 08-50

1шт.

91

KHR3870

WIRE HARNESS

1шт.

92

158962A1

CLIP

3шт.

93

167518A1

BOLT

3шт.
