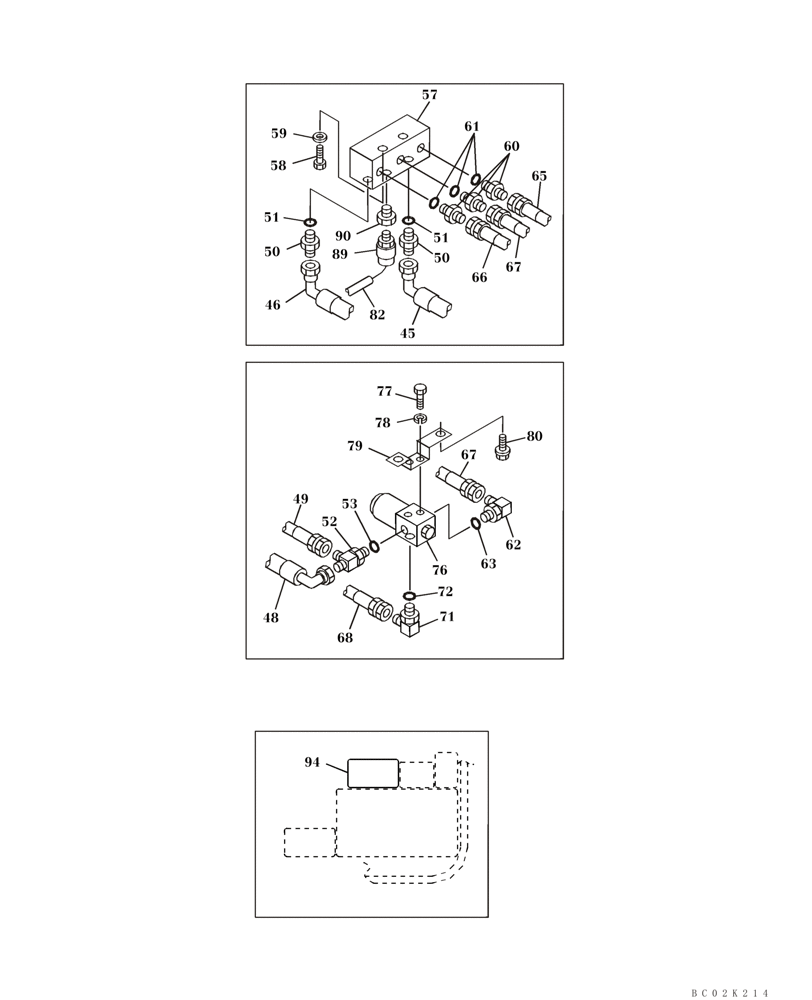

Запчасти Case CX460 (08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

45

KRJ4748

PLASTIC-RUBBER TUBE

See Figure 08-51

1шт.

46

KAJ3243

HYDRAULIC HOSE

1шт.

48

161494A1

HOSE ASSY.

See Figure 08-51

1шт.

49

159235A1

HYDRAULIC HOSE

See Figure 08-49, 850 mm (KRJ3572)

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

2шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

159497A1

TEE

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ17100

VALVE PRESSURE RELIE

Shuttle; See Figure 08-49; Replaces KHJ1655

1шт.

58

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

59

153081A1

WASHER

2шт.

60

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 61

3шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 63

2шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

161293A1

HOSE

See Figure 08-49

1шт.

66

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-49

1шт.

67

161272A1

HOSE

1шт.

68

157839A1

HOSE,6.3 mm ID x 3900.00 mm

See Figure 08-49

1шт.

71

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

162538A1

VALVE

See Figure 08-49, 8-82

1шт.

77

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

78

892-11006

LOCK WASHER,M6

2шт.

79

KRJ5751

BRACKET

1шт.

80

166346A1

BOLT,Sems, M10

2шт.

82

KHR3351

HARNESS

1шт.

89

KHR10800

PRESSURE SWITCH

Replaces 159899A1

1шт.

90

KHJ11460

ADAPTER

Replaces 152191A1

1шт.

94

KHP1755

DECAL

1шт.

100

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
