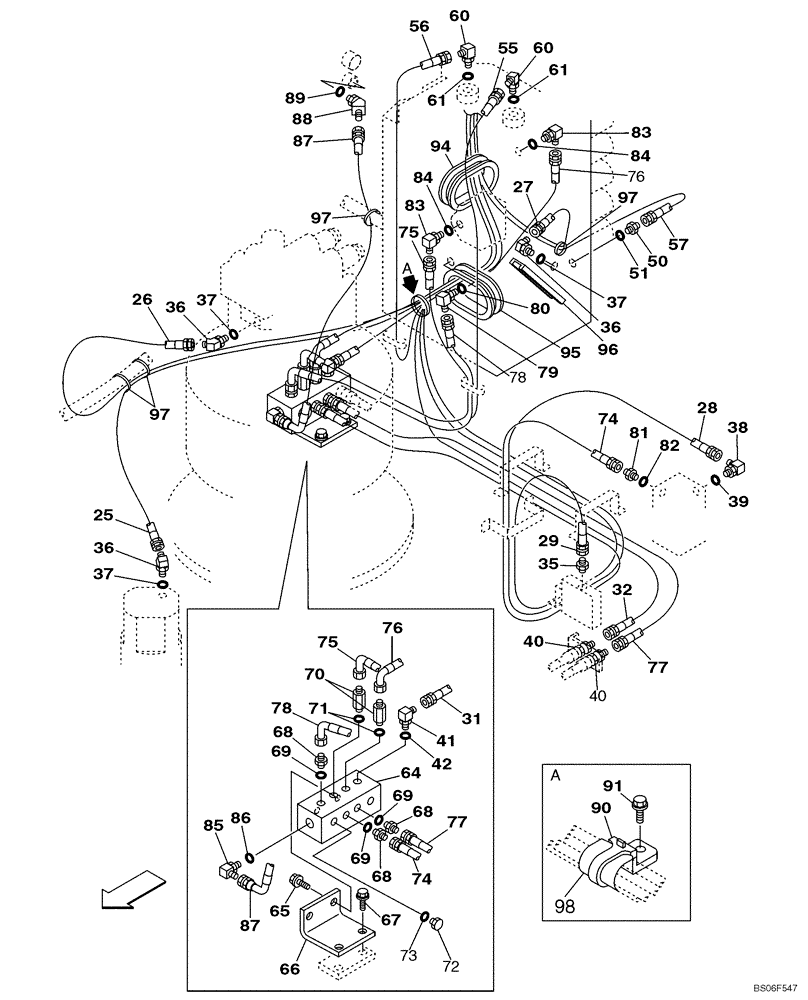

Запчасти Case CX460 (08-45) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

25

KBJ2640

HOSE

See Figure 08-43

1шт.

26

KBJ2640

HOSE

See Figure 08-43

1шт.

27

KAJ3398

HYDRAULIC HOSE

See Figure 08-43

1шт.

28

162558A1

HOSE

See Figure 08-43

1шт.

29

KHJ2281

HOSE

See Figure 08-43

1шт.

31

161174A1

HOSE ASSY.

See Figure 08-43

1шт.

32

162486A1

HOSE ASSY.

See Figure 08-43

1шт.

35

KHJ1291

ORIFICE

1шт.

36

150933A1

ELBOW

Incl. 37

3шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

162826A1

ADAPTER

2шт.

41

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

42

154475A1

O-RING

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

2шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

157996A1

HOSE,6.3mm ID x 2750mm L

See Figure 08-42

1шт.

56

157838A1

HOSE,6.5 mm ID x 3500.00 mm

1шт.

57

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

See Figure 08-44; Replaces 152778A1

1шт.

60

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 61

2шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

KTJ2111

MANIFOLD

1шт.

65

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

66

KTJ2121

BRACKET

1шт.

67

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

68

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 69

3шт.

69

154475A1

O-RING

1шт.

70

162554A1

FITTING

Incl. 71

2шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

159002A1

PLUG

1шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

159080A1

HOSE ASSY.

1шт.

75

164236A1

HOSE ASSY.

1шт.

76

162648A1

HOSE

1шт.

77

152761A1

HOSE ASSY.

1шт.

78

KAJ2467

HYDRAULIC HOSE

1шт.

79

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 80

1шт.

80

154475A1

O-RING

1шт.

81

152747A1

ADAPTER

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 84

2шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 86

1шт.

86

154487A1

O-RING

1шт.

87

KNJ2360

HYDRAULIC HOSE,12.70 mm ID x 1020.00 mm

1шт.

88

157585A1

ELBOW

Incl. 89

2шт.

89

154487A1

O-RING

1шт.

90

KHR2581

CLAMP

1шт.

91

KHJ1215

BOLT,Spcl

1шт.

94

158504A1

GROMMET

1шт.

95

163145A1

GROMMET

1шт.

96

166453A1

GROMMET

1шт.

97

150071A1

MOUNTING CLIP

1шт.

98

KHJ2622

RUBBER PAD

2шт.
