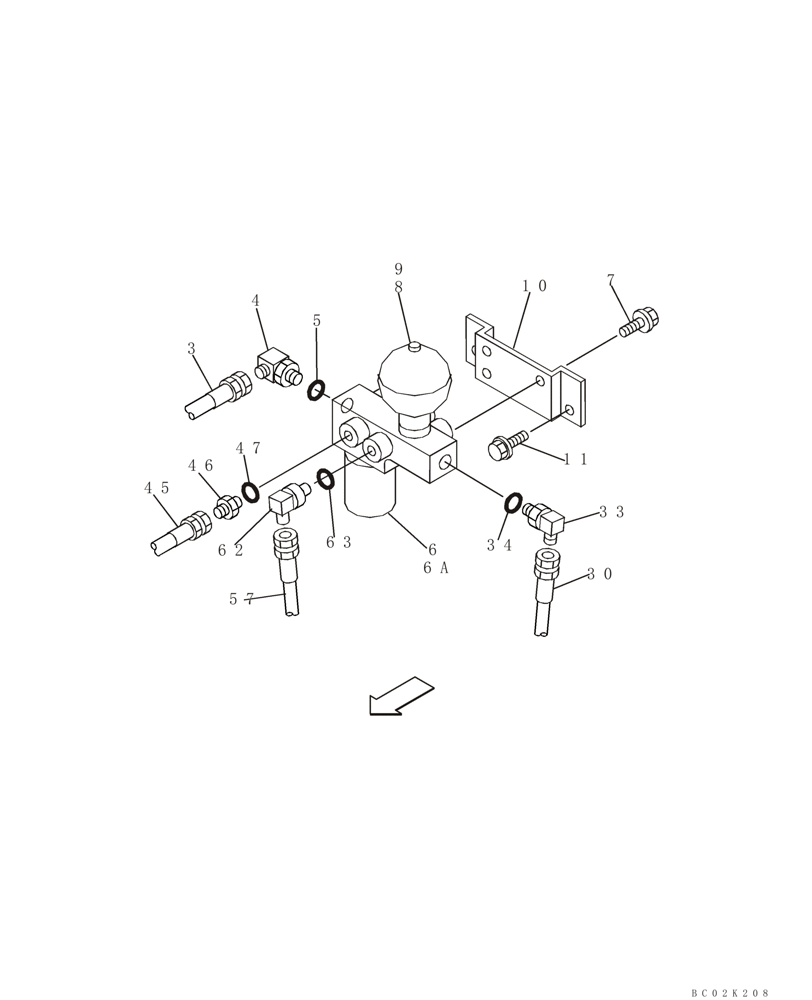

Запчасти Case CX460 (08-44) - ACCUMULATOR - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

3

KAJ3233

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

See Figure 08-42

1шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ2562

MANIFOLD

Incl. 6A

1шт.

6a

153233A1

HYDRAULIC OIL FILTER

1шт.

7

166350A1

BOLT

3шт.

8

150894A1

ACCUMULATOR

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KRJ5948

BRACKET

1шт.

11

166351A1

BOLT,Sems, M10 x 20mm

2шт.

30

KMJ2204

HOSE

See Figure 08-43

1шт.

33

157935A1

ELBOW

Incl. 34

1шт.

34

154487A1

O-RING

1шт.

45

167861A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

See Figure 08-42

1шт.

46

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 47

1шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

See Figure 08-45; Replaces 152778A1

1шт.

62

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
