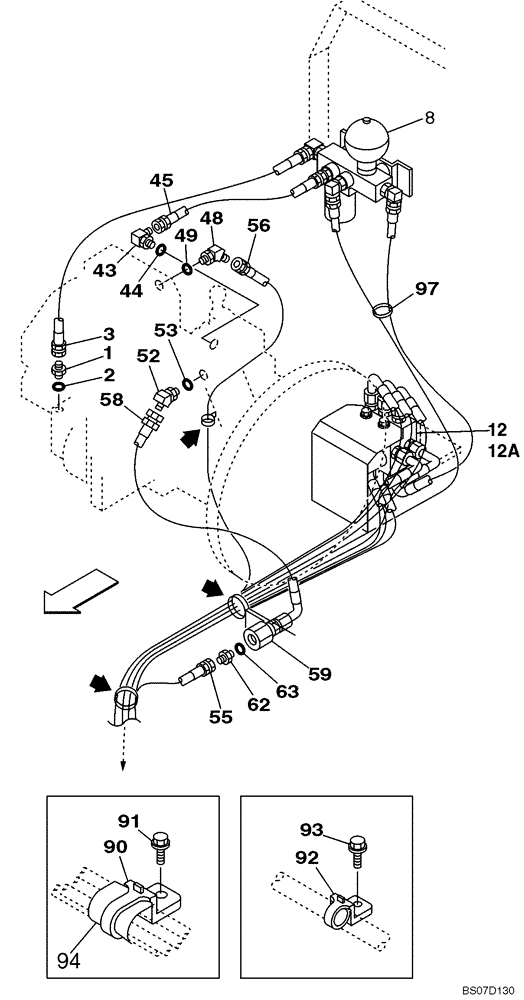

Запчасти Case CX460 (08-42) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KAJ3233

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

1шт.

8

150894A1

ACCUMULATOR

See Figure 08-44

1шт.

12

KHJ1972

SOLENOID VALVE

See Figure 08-43, 08-91; No Longer Available, Order KHJ15460

1шт.

12a

KHJ15460

SOLENOID VALVE

See Figure 08-43, 08-91A

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

167861A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

1шт.

48

150933A1

ELBOW

Incl. 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ2728

HYDRAULIC HOSE,6.30 mm ID x 2750.00 mm

Replaces 157996A1

1шт.

56

KHJ2731

HYDRAULIC HOSE,6.30 mm ID x 3500.00 mm

Replaces 157838A1

1шт.

58

KHJ2724

HYDRAULIC HOSE,6.30 mm ID x 1900.00 mm

Replaces 152581A1

1шт.

59

167662A1

FITTING

1шт.

62

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

150071A1

MOUNTING CLIP

1шт.

90

KHR2581

CLAMP

2шт.

91

KHJ1215

BOLT,Spcl

2шт.

92

KHR2584

CLAMP

1шт.

93

KHJ1215

BOLT,Spcl

1шт.

94

KHJ2622

RUBBER PAD

2шт.
