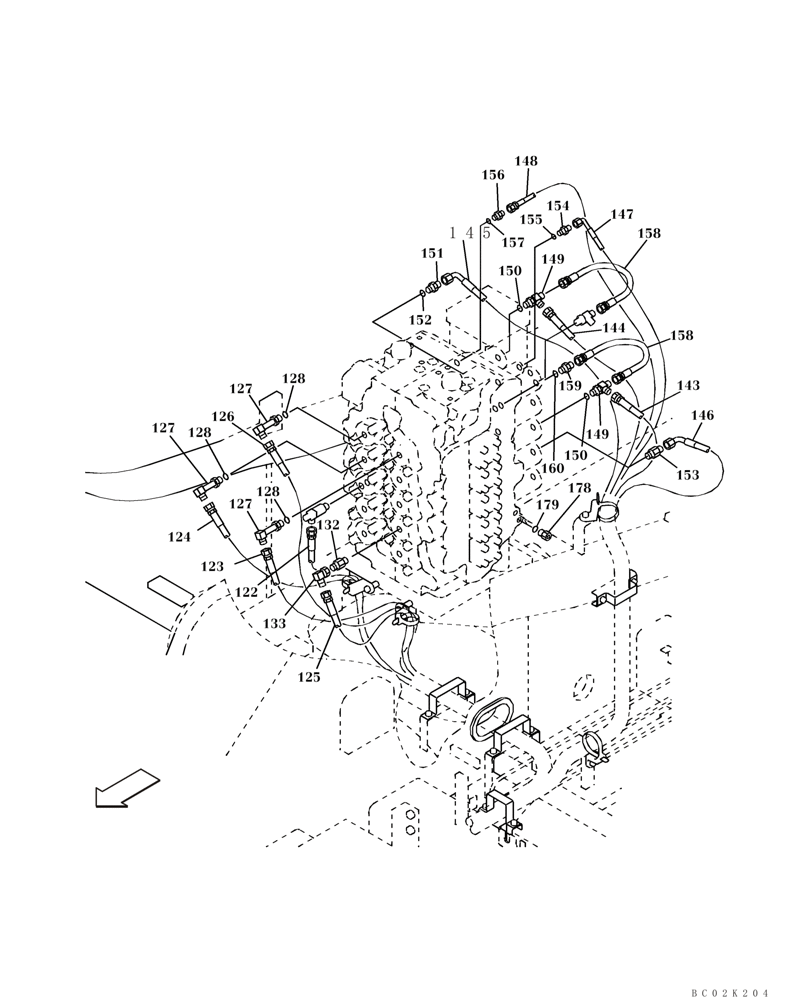

Запчасти Case CX460 (08-40) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

122

157969A1

HOSE

See Figure 08-33

1шт.

123

157969A1

HOSE

See Figure 08-33

1шт.

124

157969A1

HOSE

See Figure 08-32

1шт.

125

157967A1

HOSE

See Figure 08-32

1шт.

126

157969A1

HOSE

See Figure 08-33

1шт.

127

KHJ1442

ELBOW

3шт.

128

154475A1

O-RING

1шт.

132

KAJ2851

ADAPTER

1шт.

133

153526A1

ELBOW

1шт.

143

164230A1

HOSE ASSY.

See Figure 08-33

1шт.

144

152771A1

HOSE ASSY.

See Figure 08-33

1шт.

145

KMJ1829

HOSE

See Figure 08-32

1шт.

146

159231A1

HYDRAULIC HOSE

2750 mm (108-1/4 in); See Figure 08-32

1шт.

147

162193A1

HOSE ASSY.

See Figure 08-32

1шт.

148

KHJ1766

HOSE

1шт.

149

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 150

2шт.

150

154475A1

O-RING

1шт.

151

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 152

1шт.

152

154475A1

O-RING

1шт.

153

KAJ2851

ADAPTER

1шт.

154

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 155

1шт.

155

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

162366A1

ADAPTER

Incl. 157

1шт.

157

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

KRJ5441

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

2шт.

159

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 160

1шт.

160

154475A1

O-RING

1шт.

178

159026A1

SOCKET

Incl. 179

2шт.

179

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
