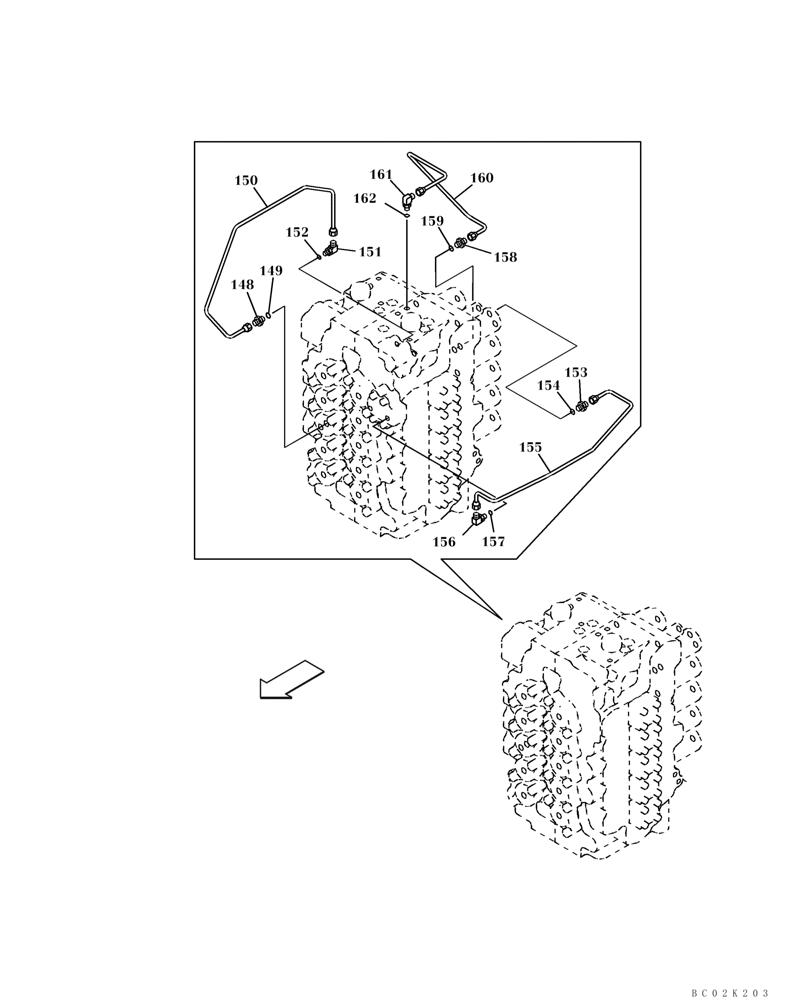

Запчасти Case CX460 (08-39) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS

148

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 149

1шт.

149

154475A1

O-RING

1шт.

150

KTJ2117

HYD TUBE,6 mm ID x 8 mm OD

1шт.

151

KHJ1391

COUPLING

Incl. 152

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 154

1шт.

154

154475A1

O-RING

1шт.

155

KTJ2118

HYD TUBE,6 mm ID x 8 mm OD

1шт.

156

KHJ1391

COUPLING

Incl. 157

1шт.

157

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 159; No Longer Used, Replaced By 153105A1 Plug, Ref. 158A

1шт.

158a

153105A1

PLUG

Incl. 159; Not Illustrated

1шт.

159

154475A1

O-RING

1шт.

160

KTJ2119

TUBE ASSY.

No Longer Used, Replaced By 157838A1 Hose, Ref 163

1шт.

161

KHJ1391

COUPLING

Incl. 162; No Longer Used; Replaced By 150913A1 Elbow, Ref 148

1шт.

161a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 162; Not Illustrated

1шт.

162

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

163

157838A1

HOSE,6.5 mm ID x 3500.00 mm

Not Illustrated

1шт.
