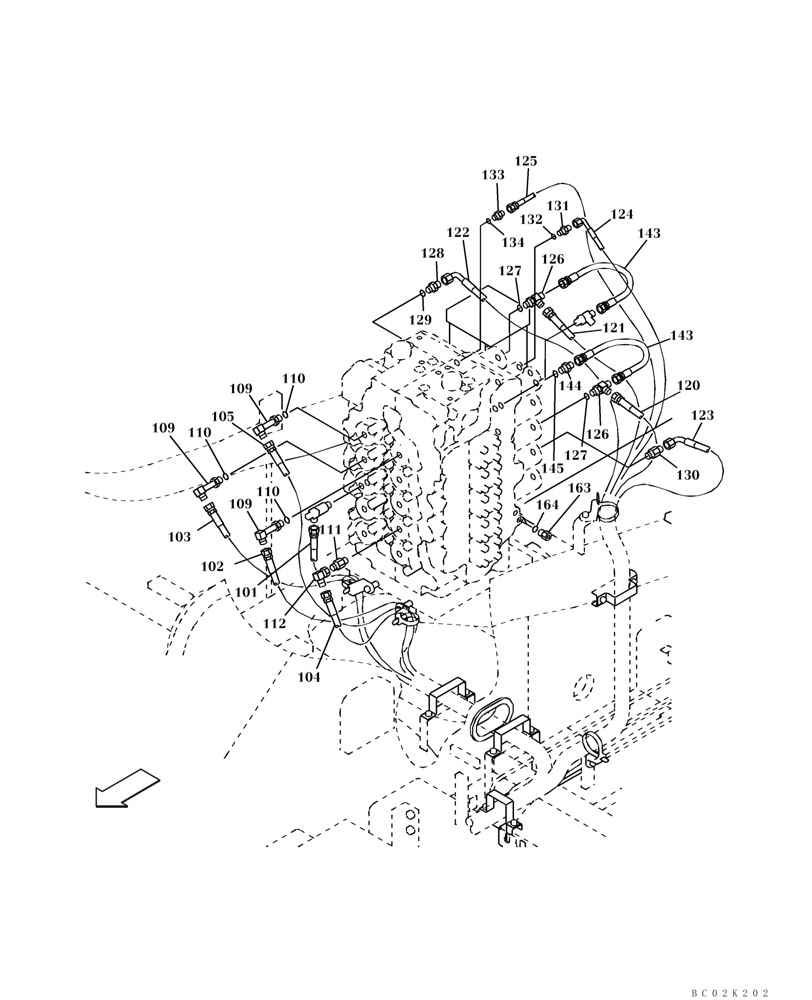

Запчасти Case CX460 (08-38) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS

101

157969A1

HOSE

See Figure 08-31

1шт.

102

157969A1

HOSE

See Figure 08-31

1шт.

103

157969A1

HOSE

See Figure 08-30

1шт.

104

157967A1

HOSE

See Figure 08-30

1шт.

105

157969A1

HOSE

See Figure 08-30

1шт.

109

KHJ1442

ELBOW

Incl. 110

3шт.

110

154475A1

O-RING

1шт.

111

KAJ2851

ADAPTER

1шт.

112

153526A1

ELBOW

1шт.

120

164230A1

HOSE ASSY.

See Figure 08-31

1шт.

121

152771A1

HOSE ASSY.

See Figure 08-31

1шт.

122

KMJ1829

HOSE

See Figure 08-30

1шт.

123

159231A1

HYDRAULIC HOSE

See Figure 08-30

1шт.

124

162193A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-30

1шт.

125

KHJ1766

HOSE

See Figure 08-31

1шт.

126

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 127

2шт.

127

154475A1

O-RING

1шт.

128

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 129

1шт.

129

154475A1

O-RING

1шт.

130

KAJ2851

ADAPTER

1шт.

131

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 132

1шт.

132

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

162366A1

ADAPTER

Incl. 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

KRJ5441

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

2шт.

144

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 145

1шт.

145

154475A1

O-RING

1шт.

163

159026A1

SOCKET

Incl. 164

2шт.

164

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
