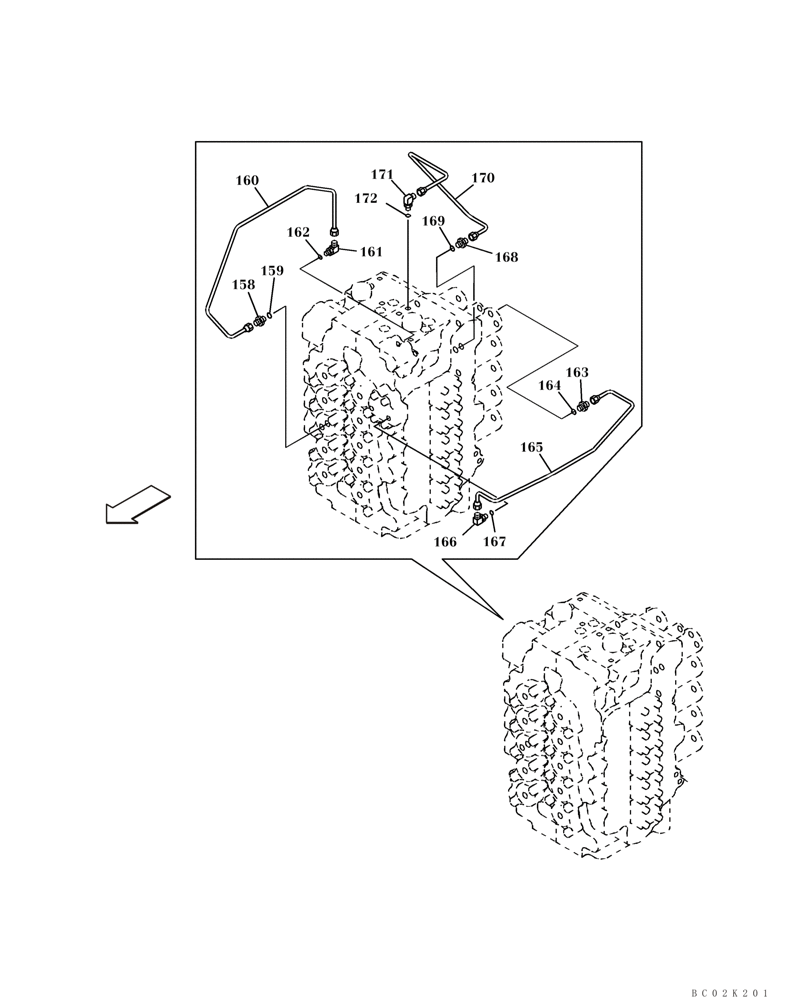

Запчасти Case CX460 (08-37) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

158

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 159

1шт.

159

154475A1

O-RING

1шт.

160

KTJ2117

HYD TUBE,6 mm ID x 8 mm OD

1шт.

161

KHJ1391

COUPLING

Incl. 162

1шт.

162

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

163

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 164

1шт.

164

154475A1

O-RING

1шт.

165

KTJ2118

HYD TUBE,6 mm ID x 8 mm OD

1шт.

166

KHJ1391

COUPLING

Incl. 167

1шт.

167

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

168

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 169; No Longer Used, Replaced By 153105A1 Plug, Ref. 168A

1шт.

168a

153105A1

PLUG

Incl. 169; Not Illustrated

1шт.

169

154475A1

O-RING

1шт.

170

KTJ2119

TUBE ASSY.

No Longer Used, Replaced By 157838A1 Hose, Ref 173

1шт.

171

KHJ1391

COUPLING

Incl. 172; No Longer Used; Replaced By 150913A1 Elbow, Ref 171A

1шт.

171a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 172; Not Illustrated

1шт.

172

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

173

157838A1

HOSE,6.5 mm ID x 3500.00 mm

Not Illustrated

1шт.

190

163814A1

ELBOW

Not Illustrated

1шт.
