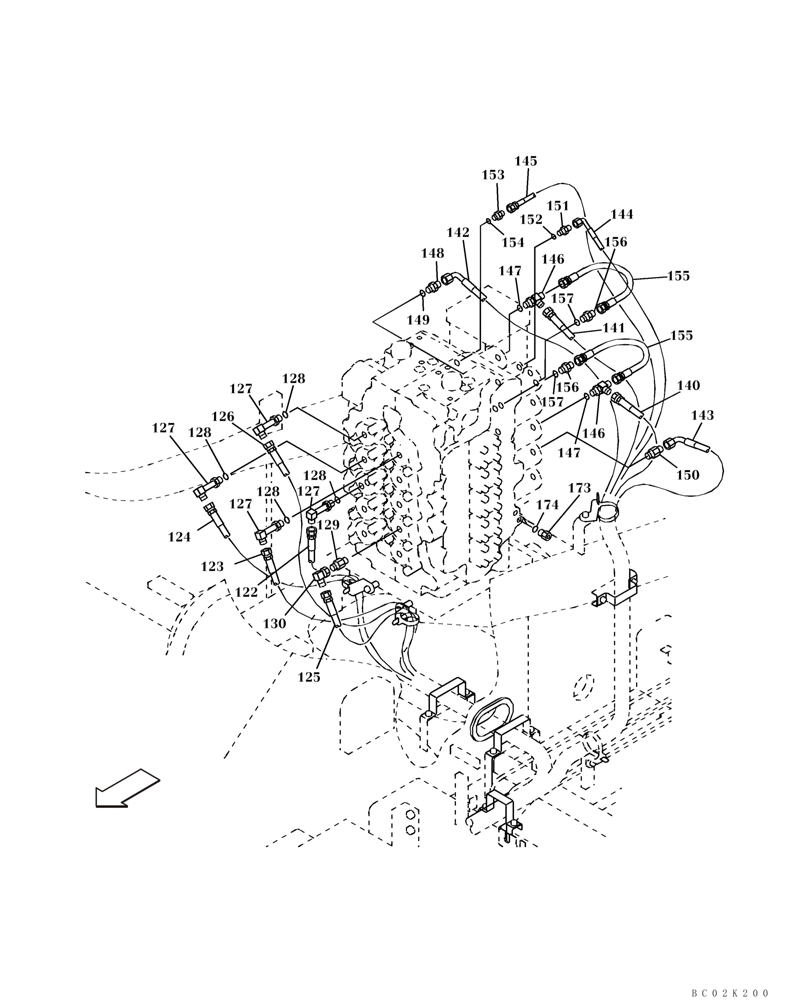

Запчасти Case CX460 (08-36) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

122

157969A1

HOSE

See Figure 08-29

1шт.

123

157969A1

HOSE

See Figure 08-29

1шт.

124

157969A1

HOSE

See Figure 08-28

1шт.

125

157967A1

HOSE

See Figure 08-28

1шт.

126

157969A1

HOSE

See Figure 08-29

1шт.

127

KHJ1442

ELBOW

Incl. 128

4шт.

128

154475A1

O-RING

1шт.

129

KAJ2851

ADAPTER

1шт.

130

153526A1

ELBOW

1шт.

140

164230A1

HOSE ASSY.

See Figure 08-29

1шт.

141

152771A1

HOSE ASSY.

3000mm (118-1/8 in); See Figure 08-29

1шт.

142

KMJ1829

HOSE

See Figure 08-28

1шт.

143

159231A1

HYDRAULIC HOSE

See Figure 08-28

1шт.

144

162193A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-28

1шт.

145

KHJ1766

HOSE

1шт.

146

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 147

2шт.

147

154475A1

O-RING

1шт.

148

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 149

1шт.

149

154475A1

O-RING

1шт.

150

KAJ2851

ADAPTER

Incl. 152

1шт.

151

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 152

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

162366A1

ADAPTER

Incl. 154

1шт.

154

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

KRJ5441

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

2шт.

156

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 157

2шт.

157

154475A1

O-RING

1шт.

173

159026A1

SOCKET

Incl. 174

2шт.

174

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
