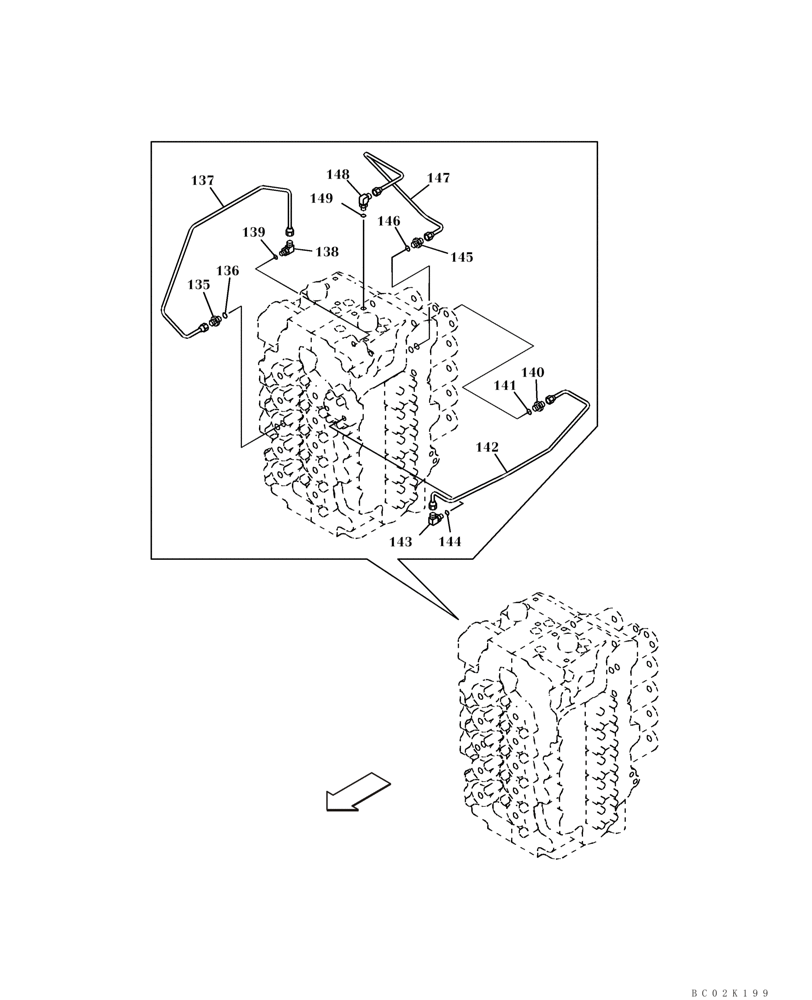

Запчасти Case CX460 (08-35) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

135

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 136

1шт.

136

154475A1

O-RING

1шт.

137

KTJ2117

HYD TUBE,6 mm ID x 8 mm OD

1шт.

138

KHJ1391

COUPLING

Incl. 139

1шт.

139

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 141

1шт.

141

154475A1

O-RING

1шт.

142

KTJ2118

HYD TUBE,6 mm ID x 8 mm OD

1шт.

143

KHJ1391

COUPLING

Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 146; No Longer Used, Replaced By 153105A1 Plug, Ref. 145A

1шт.

145a

153105A1

PLUG

Incl. 146; Not Illustrated

1шт.

146

154475A1

O-RING

1шт.

147

KTJ2119

TUBE ASSY.

No Longer Used, Replaced By 157838A1 Hose, Ref 150

1шт.

148

KHJ1391

COUPLING

Incl. 149; No Longer Used; Replaced By 150913A1 Elbow, Ref 148A

1шт.

148a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 149; Not Illustrated

1шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

157838A1

HOSE,6.5 mm ID x 3500.00 mm

Not Illustrated

1шт.
